Ubiquiti Networks Access Point AC Mesh Pro - 5-Pack (UAP-AC-M-PRO-5)
- Brand: Ubiquiti Networks
- P\N: UAP-AC-M-PRO-5-US
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Ubiquiti Networks Access Point AC Mesh Pro - 5-Pack (UAP-AC-M-PRO-5)
Experience the power of seamless connectivity with the Ubiquiti Networks UniFi AP AC Pro Outdoor 1750Mbps. This outdoor access point mesh pro is designed to provide robust and reliable wireless coverage in any outdoor environment.
Key Features and Benefits
- High-speed connectivity: With a speed of 1750Mbps, this device ensures fast and efficient data transfer.
- Outdoor Access Point Mesh Pro: This feature allows for seamless connectivity, even in large outdoor spaces.

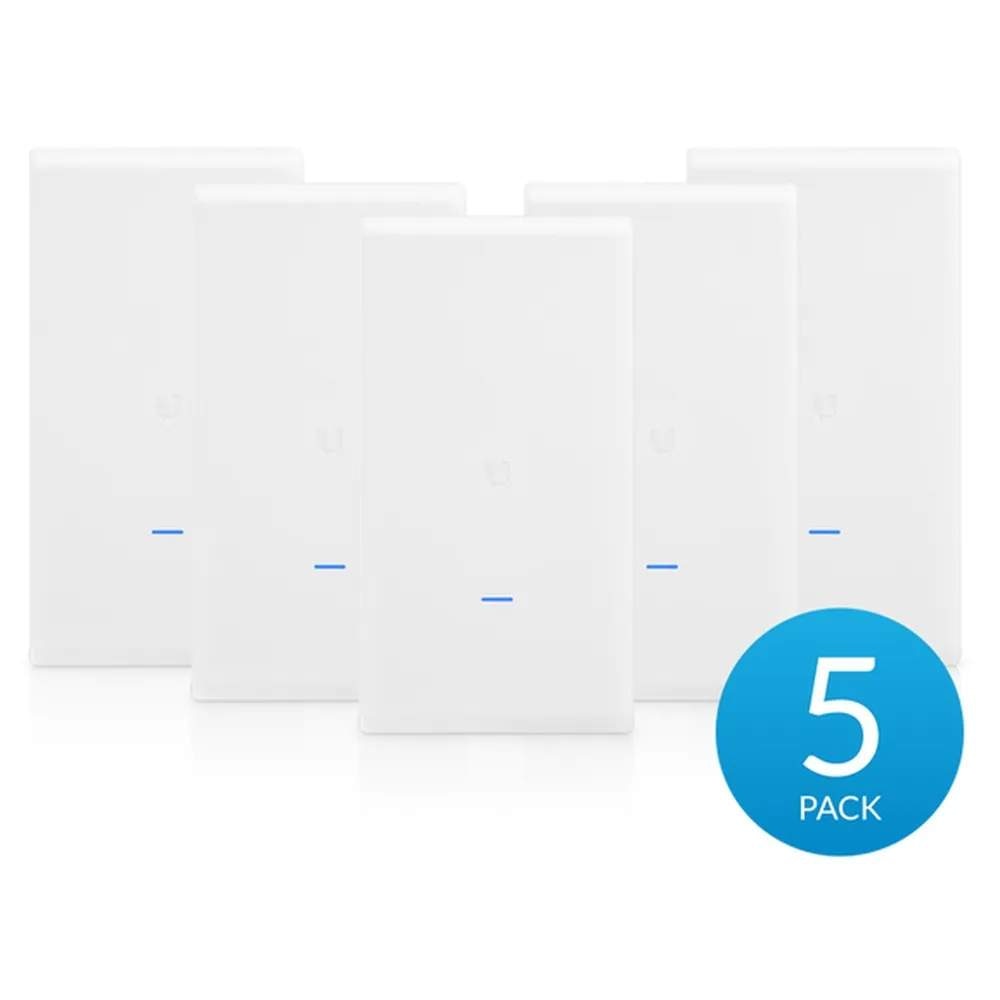

- 5 Pack: This package includes five devices, providing comprehensive coverage for larger areas.
- US Version: This product is designed to meet the specific requirements of the US market.
With its advanced features and high-speed connectivity, the Ubiquiti Networks UniFi AP AC Pro Outdoor 1750Mbps is the perfect solution for all your outdoor wireless needs. Its robust design and high-performance capabilities make it a reliable choice for any outdoor environment.
Experience the difference with Ubiquiti Networks. Don't wait, upgrade your outdoor wireless network today with the UniFi AP AC Pro Outdoor 1750Mbps. Make your purchase now!
What's in the Box:
- UniFi AP Mesh Pro (Qty. 5)
- Mounting Bracket (Qty. 5)
- Pole Clamps (Qty. 10)
- Carriage Bolts (Qty. 20)
- Flange Nuts (Qty. 20)
- Screws (Qty. 20)
- Screw Anchors (Qty. 20)
- Quick Start Guide
Features
WiFi 5
6 spatial streams
185 m² (2,000 ft²) coverage
250+ connected devices
Powered using PoE*
GbE uplink
Versatile wall and pole mounting
Weatherproof (outdoor exposed)Specifications
| Mechanical | |
|---|---|
| Dimensions | 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4") |
| Weight | 633 g (1.4 lb) |
| Hardware | |
|---|---|

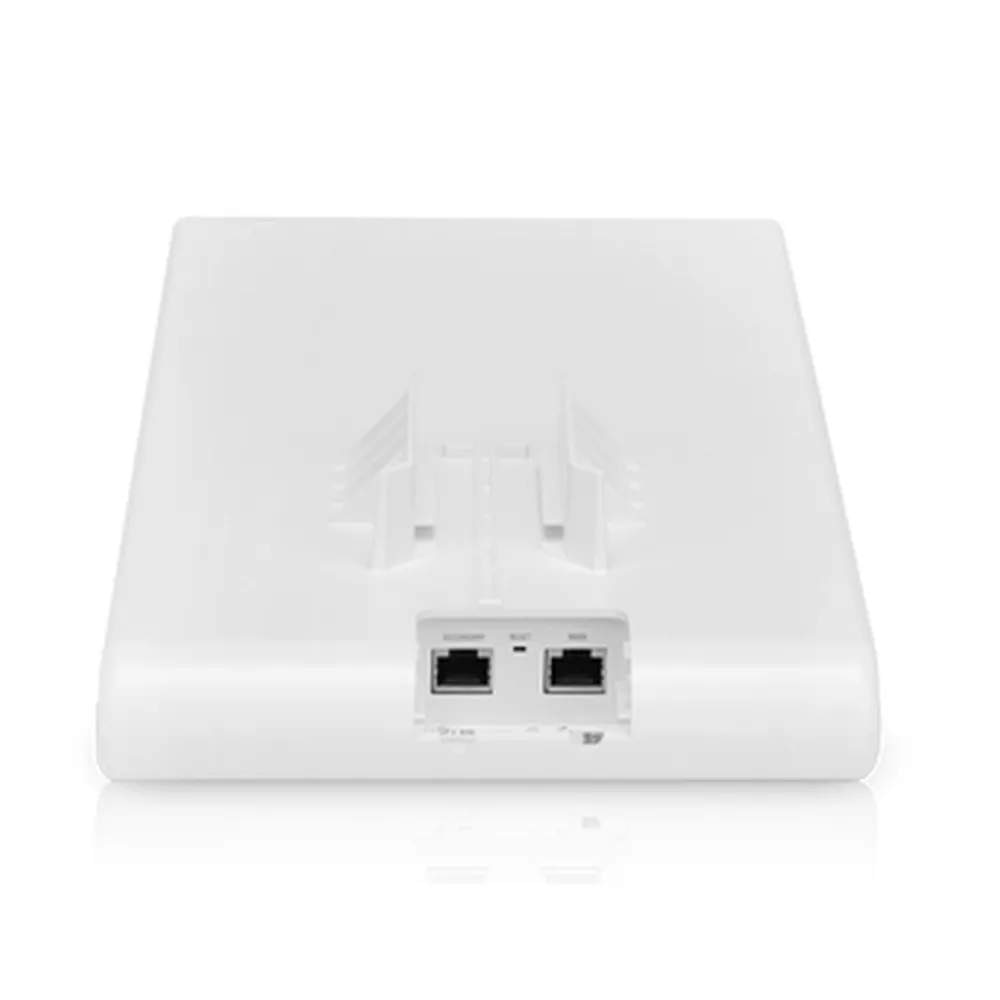

| Networking interface | (2) GbE RJ45 ports |
| Management interface | Ethernet |
| Power method | PoE |
| Power supply | Gigabit PoE adapter 48V DC, 0.5A* *5-packs do not come with PoE adapters. |
| Max. power consumption | 9W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | 22 dBm 22 dBm – |
| MIMO 2.4 GHz 5 GHz 6 GHz | 3 x 3 3 x 3 – |
| Throughput rate 2.4 GHz 5 GHz 6 GHz | 450 Mbps 1300 Mbps – |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | 8 dBi 8 dBi – |
| Button | Factory reset |
| Mounting | Wall, pole (Included) |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
|---|---|
| WiFi standards | 802.11a/b/g/n/ac |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| VLAN | 802.1Q |
| BSSID | Up to 4 per radio |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Power save | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 250+ |
| Supported Data Rates (Mbps) | |
|---|---|
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80) |
