PTZOptics 12X Optical Zoom 3G-SDI HDMI Camera White (PT12X-SDI-WH-G2)
- Brand: PTZOptics
- P\N: PT12X-SDI-WH-G2
- UPC: 737993158790
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Description

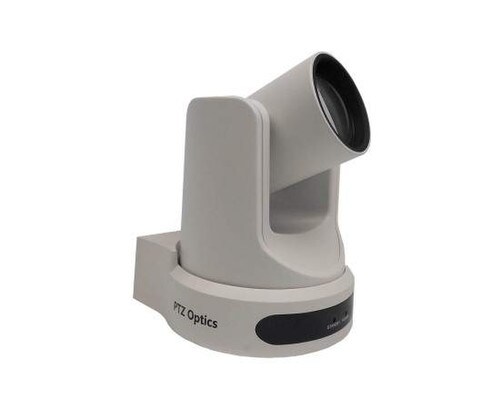

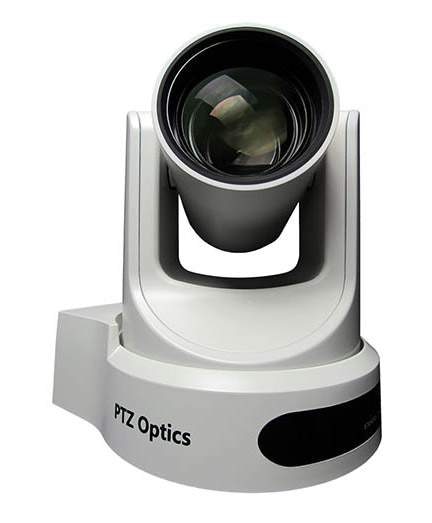

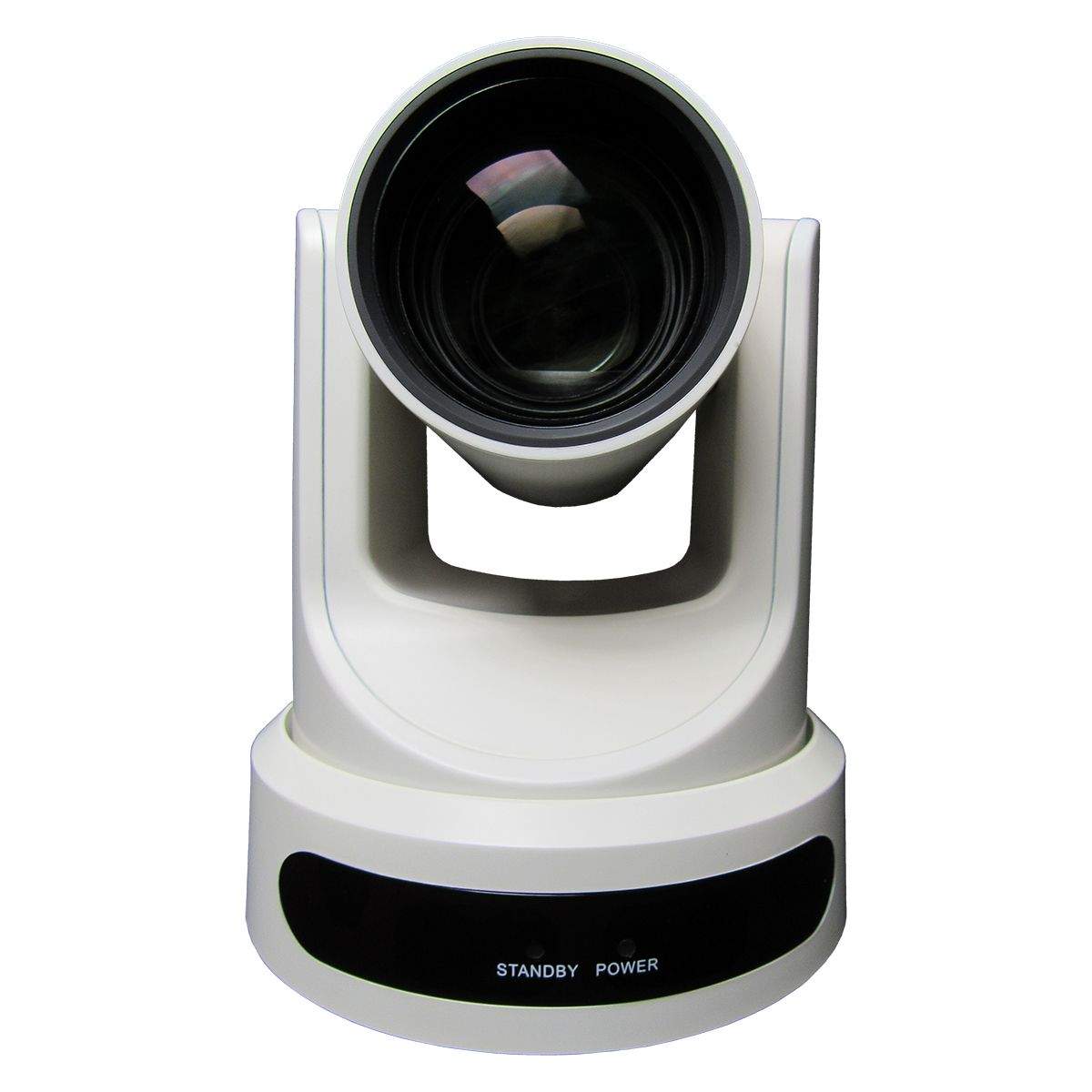

This is the 12x-SDI Gen2 model of the PTZOptics lineup of advanced live streaming cameras, in white, featuring a 3G-SDI output for connecting to switching equipment for broadcast conferencing. The Gen2 model is capable of 1080p60/50 recording (instead of a max of 30 fps), and streaming in H.265 and MJPEG in addition to H.264.
This camera has a 3.5 - 42.3mm lens providing a 12x zoom range, allowing for effective close-focus and wide-angle shots to best suit both face-to-face and group meetings. It does well in low-light conditions owing to a fast f/1.8 - f/2.8 lens aperture and minimum illumination requirement of only 0.5 lux at f/1.8. On top of this, built-in wide dynamic range and 2D and 3D noise cancellation further enhance the conferencing experience. The camera, along with its entire family of 20x and 12x models, is completely open-source so developers can customize everything as they prefer using simple HTML commands.

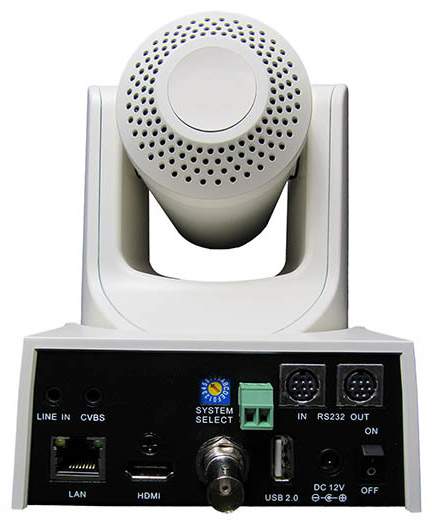

In addition to the 3D-SDI output, the camera also has LAN, HDMI, and composite outputs, RS-232 input and output with daisy-chain capability, and an RS-485 port. The SDI, LAN, and HDMI outputs can be used simultaneously at the same resolution, which can be assigned via a dial on the rear. The composite output can only be used by itself and at 480i/576i resolution. The LAN output is capable of streaming two H.264 or two H.265 RTSP signals, one in HD and one in SD, or a single MJPEG signal, and allows for direct distribution to CDNs, streaming services, and other destinations using only the camera. There's also a 3.5mm audio input for embedding audio into an HDMI signal or LAN stream so you can deliver both audio and video to your destination. The LAN port can be used for streaming and control and also supports Power-over-Ethernet. As an alternative to direct streaming from the LAN port you can also connect external devices for more advanced conferencing. You'll also find a USB 2.0 port among all the connections, but this is strictly for firmware updates.
Key Features
Included:
This camera has a 3.5 - 42.3mm lens providing a 12x zoom range, allowing for effective close-focus and wide-angle shots to best suit both face-to-face and group meetings. It does well in low-light conditions owing to a fast f/1.8 - f/2.8 lens aperture and minimum illumination requirement of only 0.5 lux at f/1.8. On top of this, built-in wide dynamic range and 2D and 3D noise cancellation further enhance the conferencing experience. The camera, along with its entire family of 20x and 12x models, is completely open-source so developers can customize everything as they prefer using simple HTML commands.
In addition to the 3D-SDI output, the camera also has LAN, HDMI, and composite outputs, RS-232 input and output with daisy-chain capability, and an RS-485 port. The SDI, LAN, and HDMI outputs can be used simultaneously at the same resolution, which can be assigned via a dial on the rear. The composite output can only be used by itself and at 480i/576i resolution. The LAN output is capable of streaming two H.264 or two H.265 RTSP signals, one in HD and one in SD, or a single MJPEG signal, and allows for direct distribution to CDNs, streaming services, and other destinations using only the camera. There's also a 3.5mm audio input for embedding audio into an HDMI signal or LAN stream so you can deliver both audio and video to your destination. The LAN port can be used for streaming and control and also supports Power-over-Ethernet. As an alternative to direct streaming from the LAN port you can also connect external devices for more advanced conferencing. You'll also find a USB 2.0 port among all the connections, but this is strictly for firmware updates.
Key Features
- Wide Dynamic Range: Helps with challenging lighting conditions such as a mix of dark and light areas
- Noise Reduction: 2D and 3D noise reduction with our latest “low noise CMOS sensor”
- Full Frame Rates: 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25
- Warranty: 5 Year Parts & Labor Manufacturer Warranty
- Broadcast Frame Rates: 1080p59.94/29.97, 1080i59.94, 720p59.94
- Advanced White Balance Modes: Simple One-push & New Kelvin Temperature Scale
Included:
- 12X Zoom 3G-SDI Camera
- Power Adapter + Cord
- IR Remote Control
- RS-232C Cable
- Quick Start Guide
- (2) AAA Batteries
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
