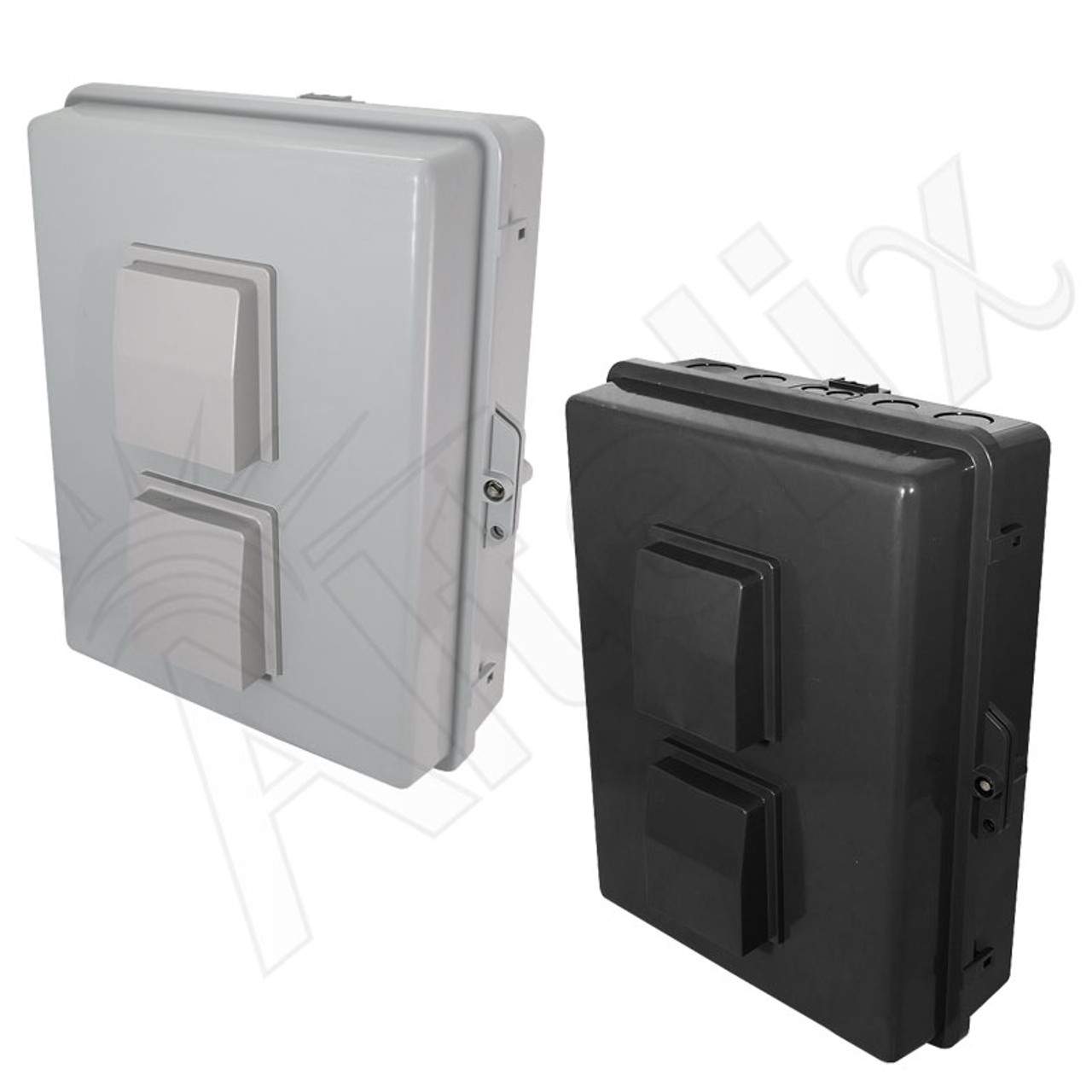

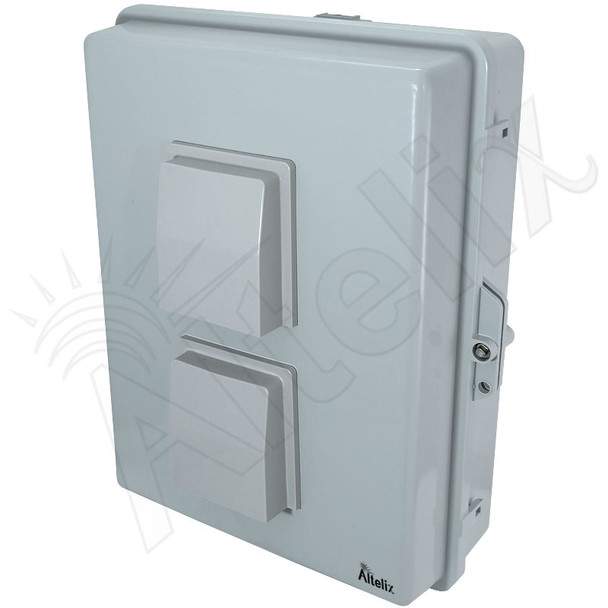

Altelix 17x14x6 Vented ABS Weatherproof NEMA Enclosure w/Cooling Fan (NP171406VFA1C)

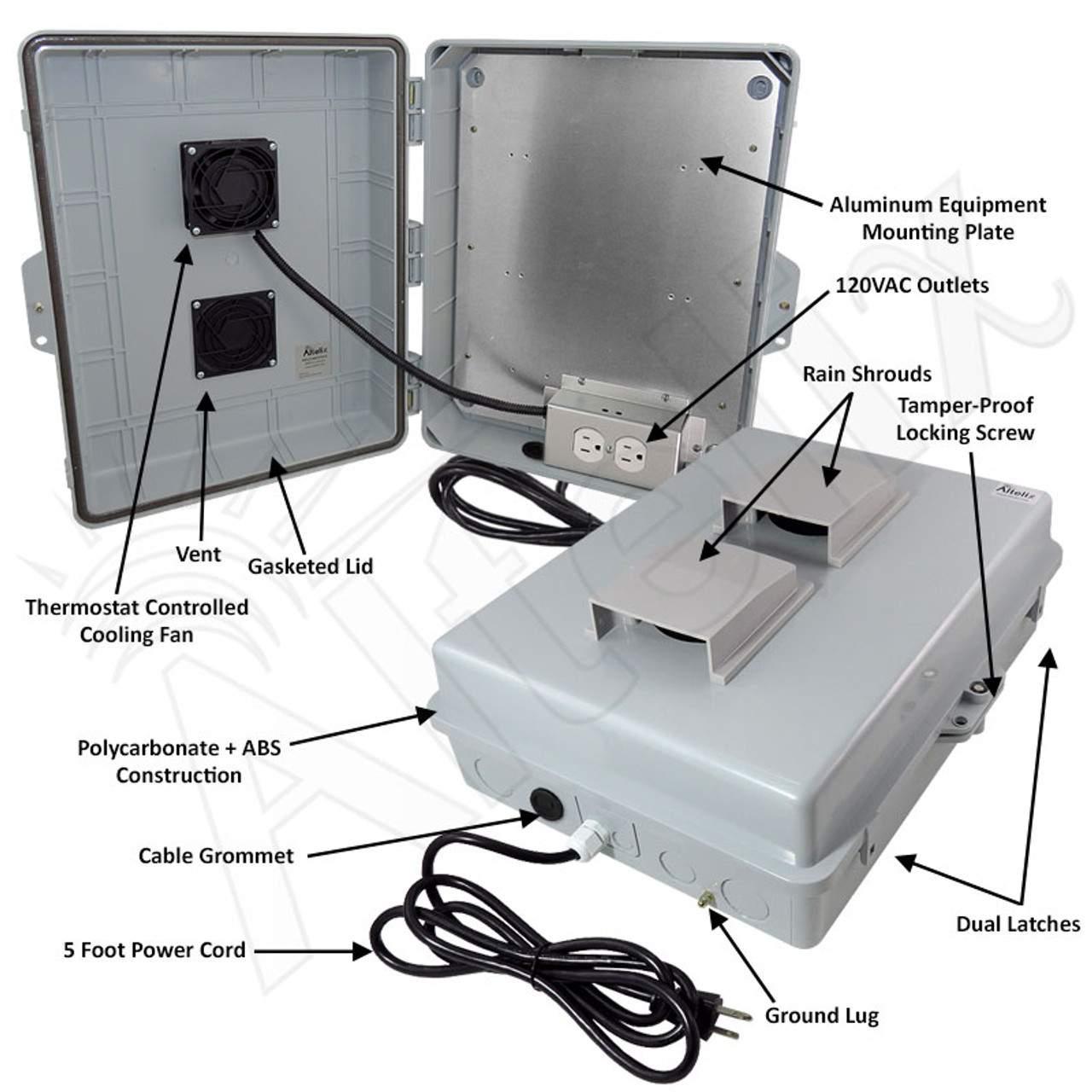

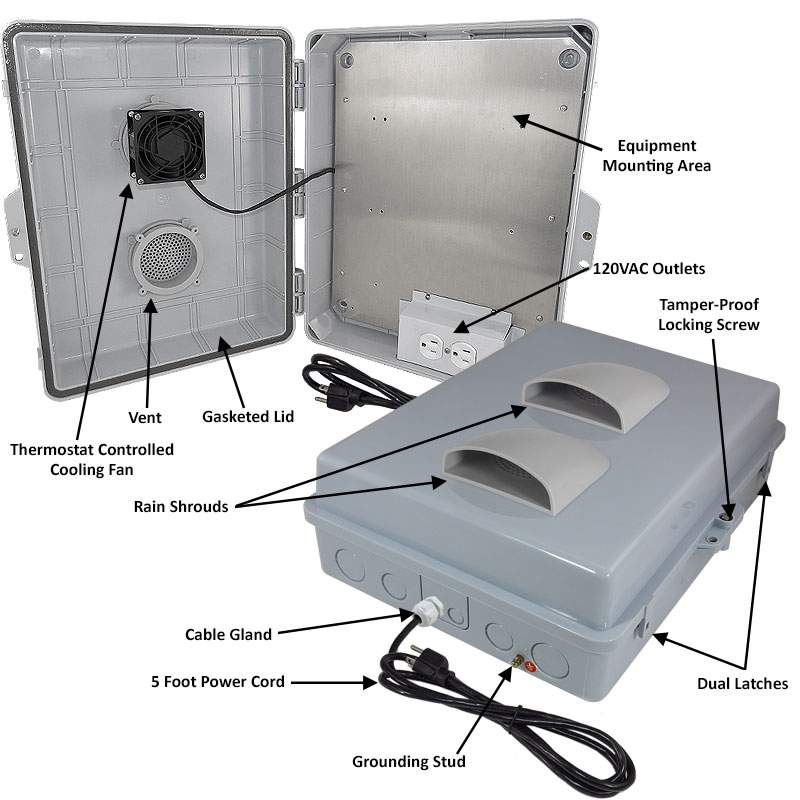

The Altelix NP171406VFA1C Vented Fan Cooled Polycarbonate + ABS NEMA Weatherproof Enclosure with 120VAC Power and Aluminum Equipment Plate is ideal for protecting equipment from harsh environments and tampering. This enclosure features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches, and a tamper-proof locking screw with a key to secure the enclosure. There is also a provision for padlock use. Internal and external electrical ground points are also provided.

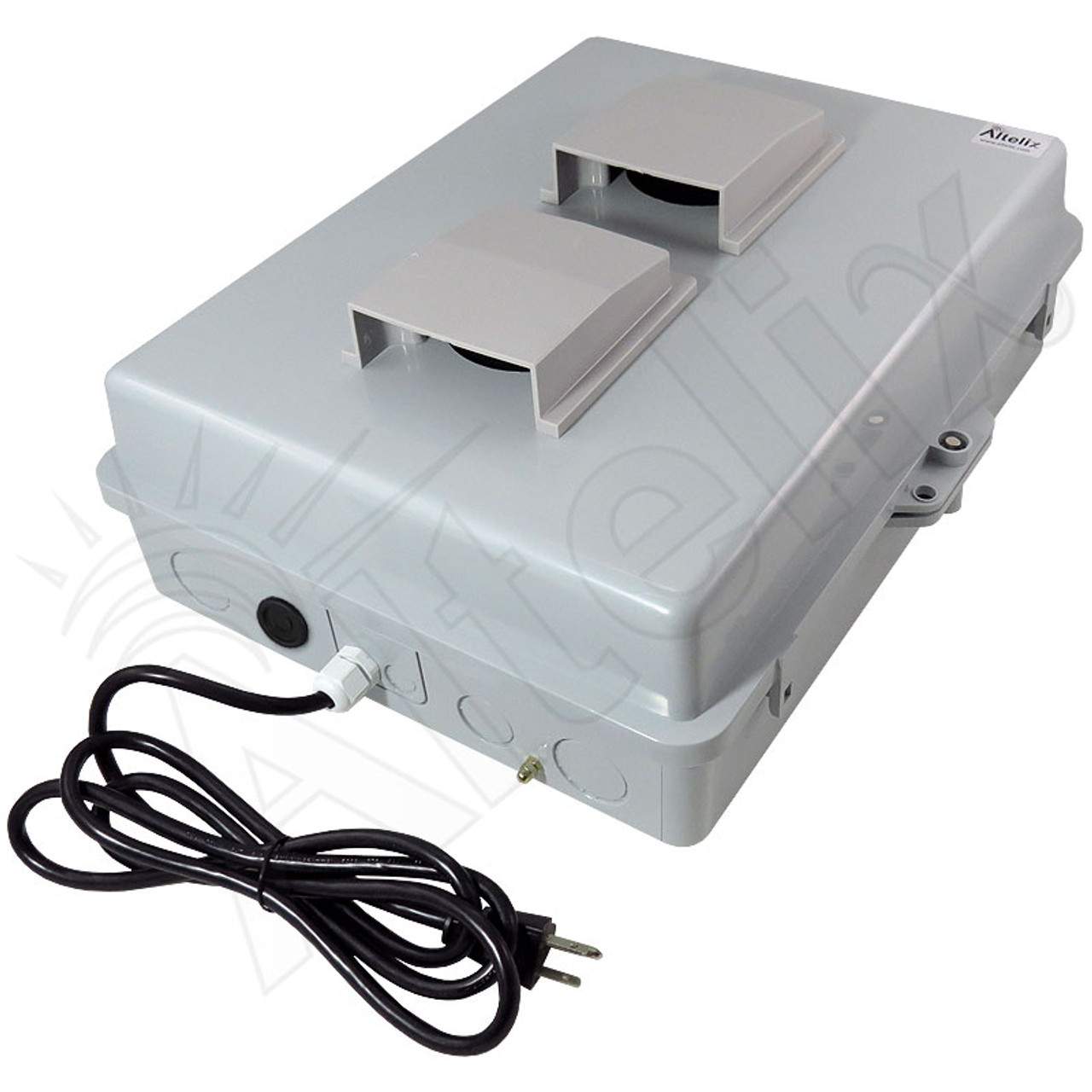

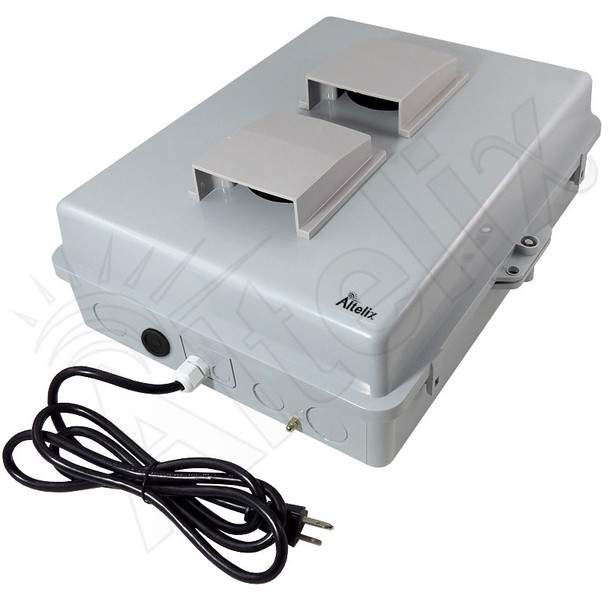

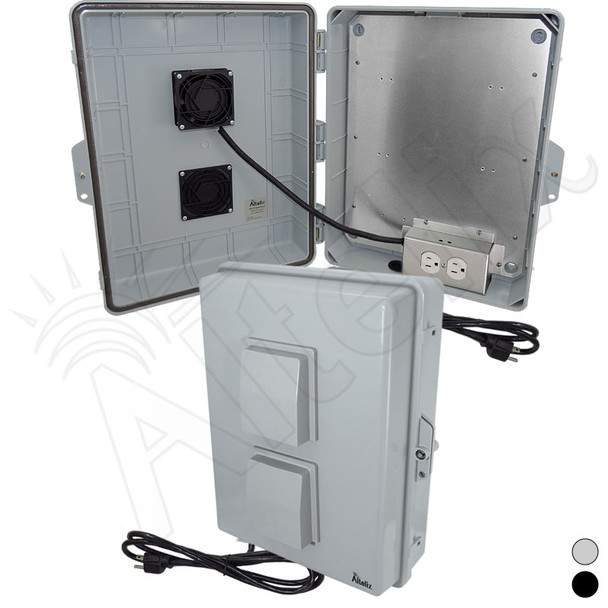

These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability, and dimensional stability even at extreme cold and hot temperatures. The NP171406VFA1C features dual 3.5" vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rainwater from entering the enclosure. Dual fans are also available by request.

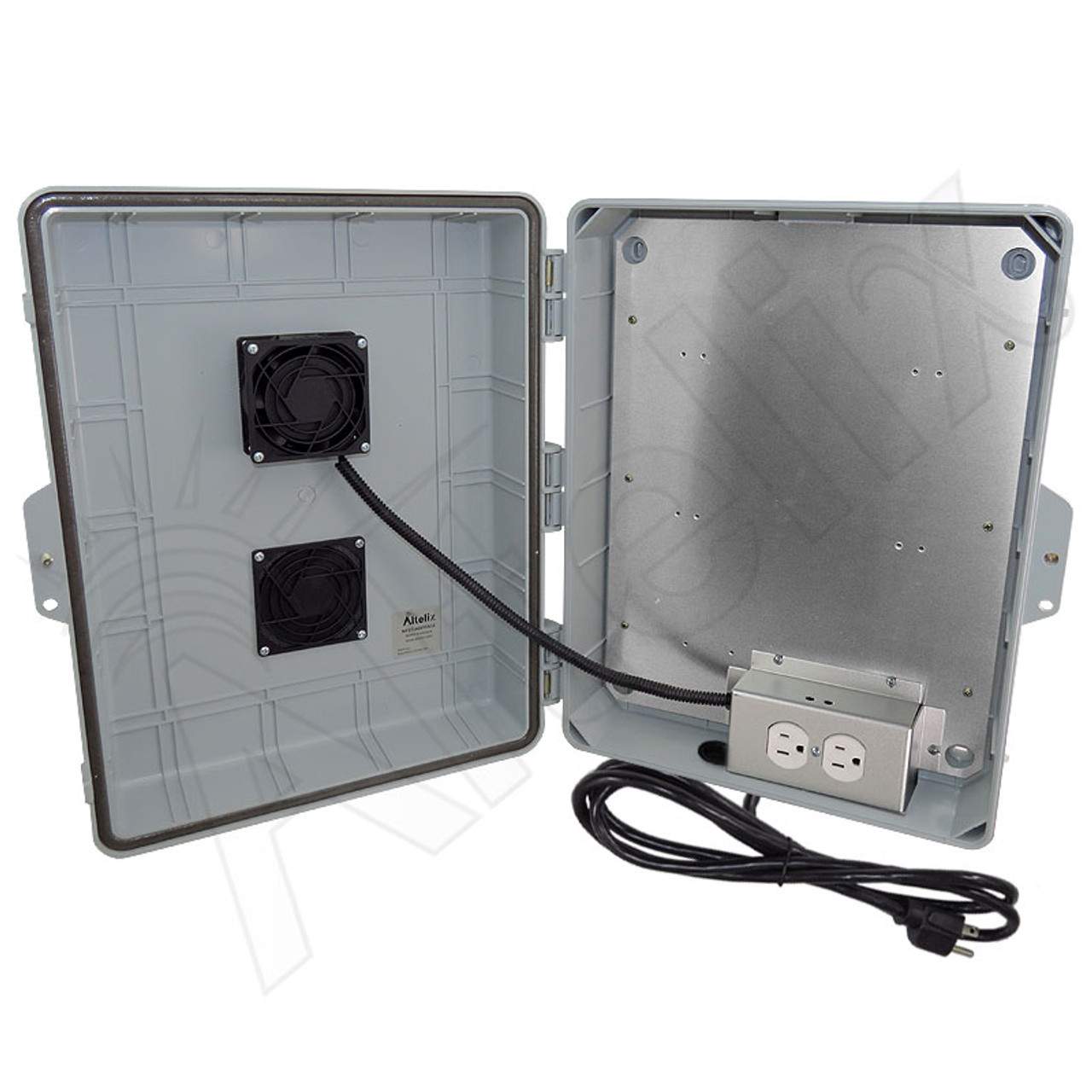

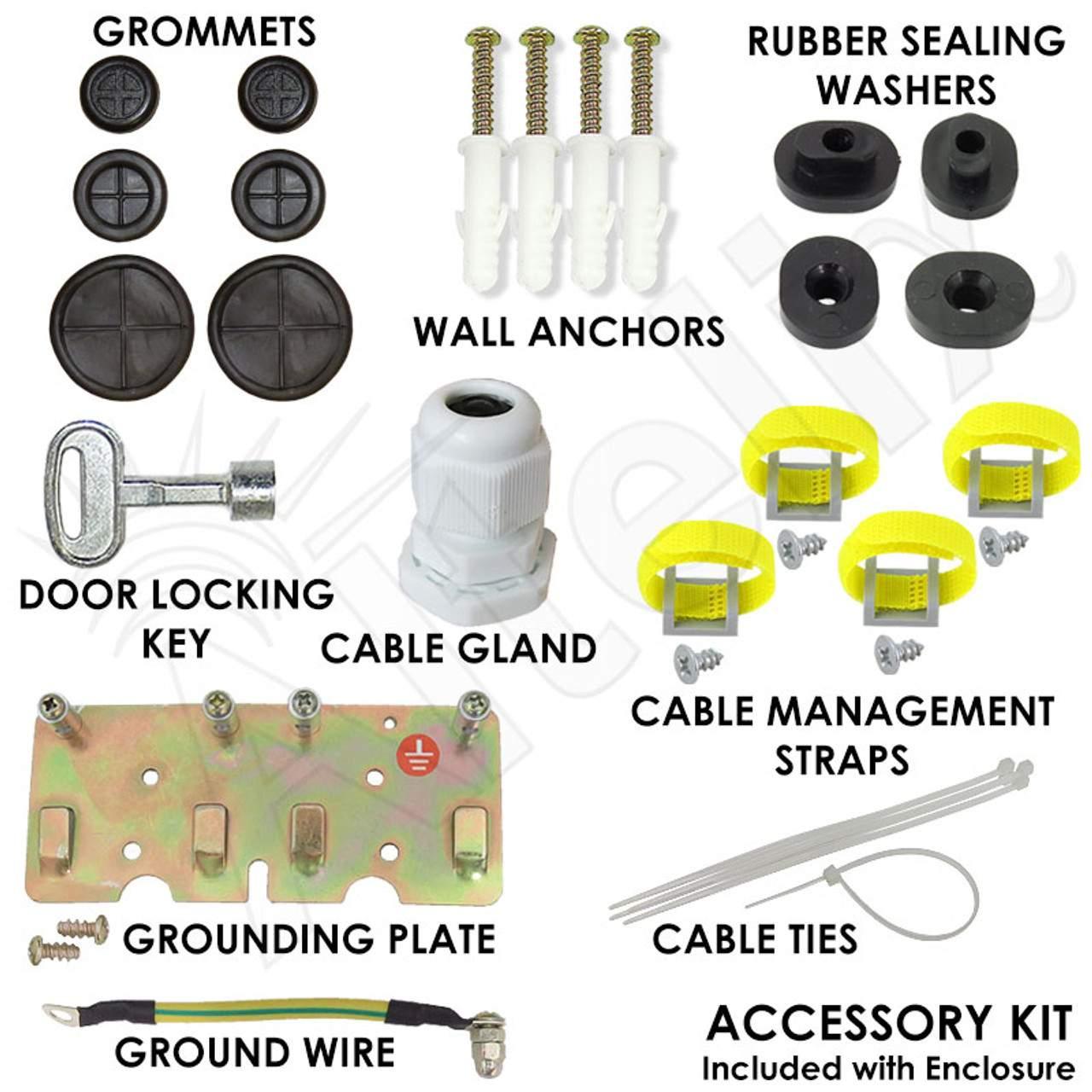

This configuration consists of the PC+ABS NEMA enclosure with hinged lid and a 2.0mm thick aluminum plate with two 120VAC power outlets. A 5-foot pre-wired power cord is included to power the enclosure, so no additional wiring is required. A ground lug is provided and one cable gland for the AC supply. Knock-outs are provided on the enclosure for additional wiring. Cable grommets are included with the accessory kit. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements. The enclosure can be wall mounted using the included wall anchors. Great for use in applications such as Indoor / Outdoor WiFi Equipment, SCADA Remote Terminal Unit, Security and Surveillance Systems, Outdoor use of Indoor Equipment, Protection of Equipment from Theft or Damage, and Concealment of Electronic Equipment.
*Note: Enclosure internal depth decreases when cooling fans or heaters are used. If you have questions, contact Solid Signals customer service department at 877-312-4547.
Key Features

• Dual 3.5" Vents and Thermostat Controlled Cooling Fan
• PC+ABS Polycarbonate / ABS Blend
• Gasketed Lid with Tamper-Proof Locking Screw
• Dual Door Latches
• Includes Aluminum Mounting Plate with 120VAC Outlets
• Pre-wired 5-foot power cord
• NEMA Type 3R, 3RX / IP24 Rated
• Includes Wall Mount Hardware and Cable Grommets
