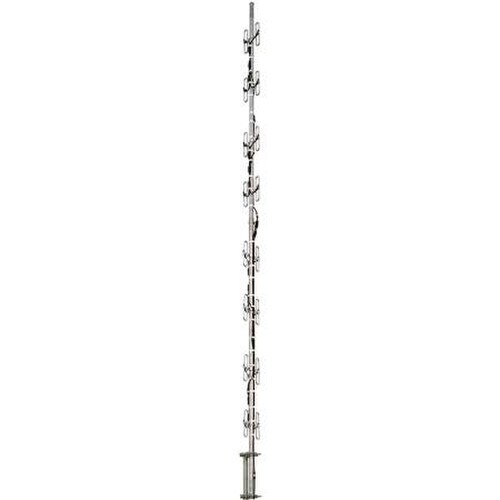

CommScope 450-470 MHz 9.2dBd Exposed Dipole Omni Antenna (DB420-B)
- Brand: CommScope
- P\N: DB420-B
- UPC: 729198733612
Do you have questions?
Please contact our experts for assistance.
Description
CommScope 450-470 MHz 9.2dBd Exposed Dipole Omni Antenna (DB420-B)
Key Features and Benefits
- Wide operating frequency band (450-470 MHz)
- High gain (11.3 dBi) for improved signal strength
- 360° horizontal beamwidth for broad coverage
- Moisture-resistant and rugged design for outdoor use
- Easy installation with included mounting kit
Experience enhanced communication capabilities with the CommScope DB420-B Exposed Dipole Omni Antenna. Designed for professionals who require reliable and efficient communication systems, this high-performance antenna offers a wide operating frequency band and exceptional gain for improved signal strength and coverage.
Technical Specifications
- Antenna Type: Omni
- Operating Frequency Band: 450 – 470 MHz
- Polarization: Vertical
- Gain, dBi: 11.3
- Beamwidth, Horizontal, degrees: 360
- Beamwidth, Vertical, degrees: 7
- Beam Tilt, degrees: 0
- VSWR | Return loss, dB: 1.5 | 14.0
- Input Power per Port, maximum, watts: 250
- Impedance: 50 ohm
- RF Connector Interface: N Male
- Dimensions: Length - 5918.2 mm | 233 in
- Net Weight, without mounting kit: 15.6 kg | 34.392 lb
Robust and Reliable Design
Constructed with high-quality materials, the CommScope DB420-B antenna is built to withstand harsh outdoor conditions. Its moisture-resistant and rugged design ensures long-lasting performance, while the aluminum radiator material provides excellent durability. Additionally, the antenna is compliant with various regulatory standards, including ISO 9001:2015, ROHS, CHINA-ROHS, REACH-SVHC, and UK-ROHS.
Effortless Installation
Installing the CommScope DB420-B antenna is a breeze, thanks to the included mounting kit. The antenna's RF connector is located at the end of a flexible lead, allowing for easy connection to your communication system. Plus, the antenna's grounding type ensures that the RF connector's inner conductor and body are grounded to the reflector and mounting bracket for added safety.
Upgrade your communication system with the CommScope DB420-B Exposed Dipole Omni Antenna and experience the difference in signal strength and coverage. Order yours today and enjoy seamless communication in any environment.
