10ft Sentinel Ultra Performance Ant.(USX10-11W-6GF)

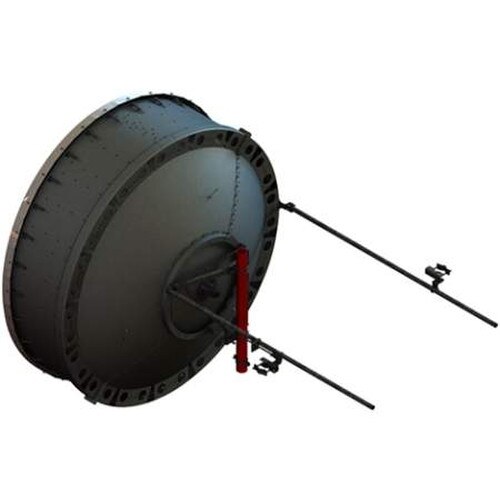

Introducing the 10ft Sentinel Ultra Performance Antenna (USX10-11W-6GF) by CommScope

Experience unparalleled performance and reliability with the CommScope 10ft Sentinel Ultra Performance Antenna (USX10-11W-6GF). Designed for professionals seeking the highest quality in microwave antenna technology, this dual-polarized antenna offers exceptional signal strength and coverage in the 10.000 – 11.700 GHz frequency band.

Key Features and Benefits

• Ultra High Performance, Super High XPD Antenna for superior signal quality
• Dual-polarized design for increased reliability and coverage
• 10.000 – 11.700 GHz operating frequency band for versatile applications
• High gain and excellent front-to-back ratio for optimal performance
• Robust construction with two-piece reflector and fabric radome for durability
• Easy installation with included side struts and fine azimuth/elevation adjustments
• Compliant with multiple regulatory standards for peace of mind

Technical Specifications

With a diameter of 3.0m (10ft), the USX10-11W-6GF antenna offers impressive gain levels of 47.2 dBi (low band), 47.9 dBi (mid band), and 48.5 dBi (top band). Boasting a boresite cross polarization discrimination (XPD) of 40 dB and a front-to-back ratio of 82 dB, this antenna ensures exceptional signal quality and coverage. The antenna is also compliant with various electrical standards, including ACMA FX03_10a, ACMA FX03_11a, ETSI 302 217 Class 3, US FCC Part 105A, and US FCC Part 107A.

Designed for easy installation, the USX10-11W-6GF antenna includes two side struts and offers fine azimuth and elevation adjustment ranges of ±5°. The antenna is built to withstand operational wind speeds of 180 km/h (111.847 mph) and survival wind speeds of 200 km/h (124.274 mph).

When it comes to packaging and weights, the antenna has a gross weight of 513 kg (1130.97 lb) and a net weight of 263 kg (579.815 lb). The antenna is designed, manufactured, and distributed under the ISO 9001:2015 quality management system, ensuring the highest standards of quality and performance.

Upgrade Your Network with CommScope's 10ft Sentinel Ultra Performance Antenna

Don't settle for less when it comes to your network's performance. Invest in the CommScope 10ft Sentinel Ultra Performance Antenna (USX10-11W-6GF) and experience the difference that superior technology can make. With its exceptional signal quality, coverage, and durability, this antenna is the perfect choice for professionals seeking the best in microwave antenna technology. Upgrade your network today and experience the CommScope difference.
