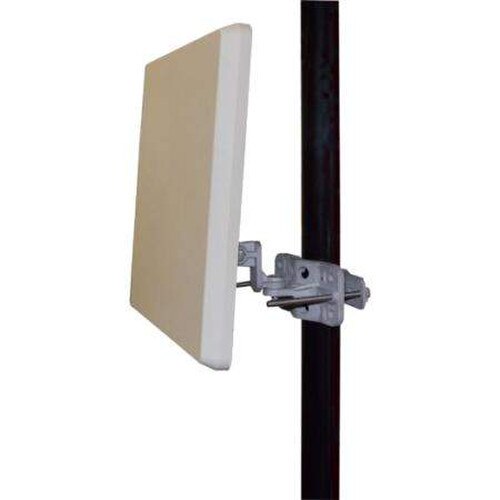

Ventev 2.4/5GHz 13dBi High Density Patch (M6130130MP1D3607D)

Ventev 2.4/5GHz 13dBi High Density Patch (M6130130MP1D3607D)

Ventev's high-density 2.4/5 GHz 13 dBi patch antenna. This antenna is designed for wireless networks operating in the 2.4 GHz and 5 GHz frequency range in both indoor and outdoor applications. The antenna uses a narrow 35 deg. beamwidth at 2.4/5 GHz, minimizing channel-to-channel interference which in turn leads to increased capacity. Specifications include vertical polarization, 50 Ohm, ≤ 2.0 VSWR along with 50 W maximum input power.

Key Features

• Operating Frequency Range: 2.4/5 GHz
• Gain: 13 dBi
• Polarization: Vertical, Horizontal
• Vertical Beamwidth: 35°
• Horizontal Beamwidth: 35°

Don't settle for subpar wireless connectivity. Upgrade your network with the Ventev 2.4/5GHz 13dBi High Density Patch antenna and experience the difference that superior performance and reliability can make. Order yours today and take your wireless networking to the next level.

• Operating Frequency Range 2.4/5 GHz

• Gain 13 dBi

• Polarization Vertical, Horizontal

• Vertical Beamwidth 35°

• Horizontal Beamwidth 35°

• VSWR ≤ 2.0

• Nominal Impedance 50 Ohms

• Max Input Power 50 W

• Number of Ports 4

• RF Connector N Female

• Application Indoor / Outdoor

• Operating Temperature -22° to 158°F

• Dimensions 14.96 x 14.96 x 1.3 inch

• Weight 7.44 lbs.

• Mounting Style Mast Mounting

• Bandwidth 100 / 700 MHz

• Pole Diameter 1.97 x 4.7 in

• Isolation ≥ 28 dB
