25G Wall Mount Kit with Suspended Base(25GWM)

25G Wall Mount Kit with Suspended Base(25GWM)

ROHN's R-25GWM is designed as an alternative to a short base embedded section when used in conjunction with the Rohn R-HBUTVRO universal house brackets on 25G bracketed tower configurations. The R-25GWM assembly comes complete with both top and bottom wall mounting bracket materials and stub leg base plate for connection to a standard Rohn 25G tower section. Holes provided in the mounting angles are 11/16 in diameter for use with HDG 5/8 inch threaded rod (not included).BRBRIt is the purchaser's responsibility to verify that the installation and building structure are able to withstand all loads imposed by the antenna system and mount.

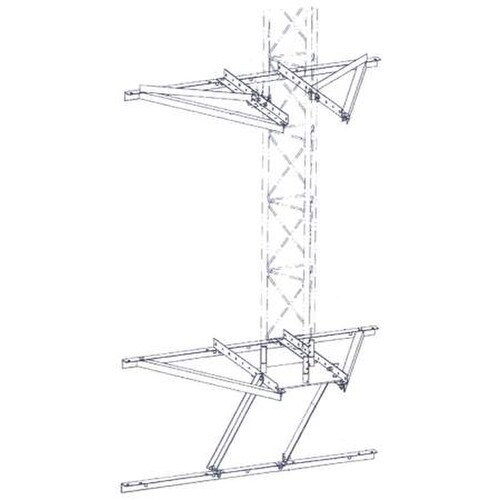

The 25GWM upper bracket provides lateral support for 25G wall supported towers. The lower bracket provides both lateral and vertical support. The 25G base plate (P/N KH6775, not shown) is provided with mount to provide an adjustable 6 inch - 20 inch of clearance to wall.

The brackets are pre-drilled to accept 5/8 inch diameter connectors at 16 inch or 24 inch spacing. A minimum 5 foot separation between the top and bottom brackets is recommended.
