Altelix 10x5 Inch Aluminum Utility Shelf

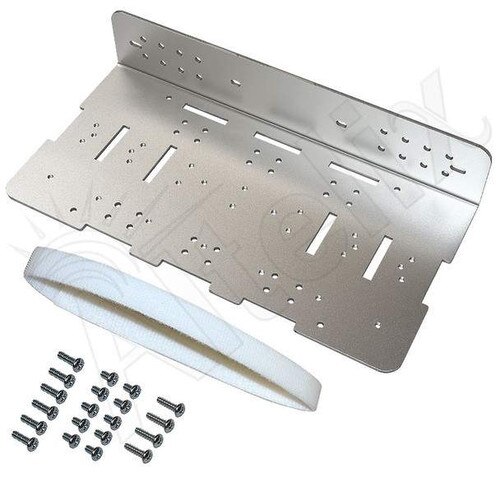

The Altelix HBR-001 utility shelf is designed hold a wide range equipment from SLA type batteries to electronic devices.  Constructed from heavy duty aluminum, this utility shelf features threaded and non-threaded holes for mounting equipment as well as provisions for using the included hook-and-loop strap.

Mounting
The HBR-001 can be mounted to any of our equipment mounting plates by drilling (4) holes. A drawing with mounting holes is available in the Downloads section. #6-32 machine screws are provided in the accessory kit as well as #6 thread forming screws for use with enclosures using non-metallic no-drill equipment mounting plates.

Pre-Drilled Equipment Mounting Plates

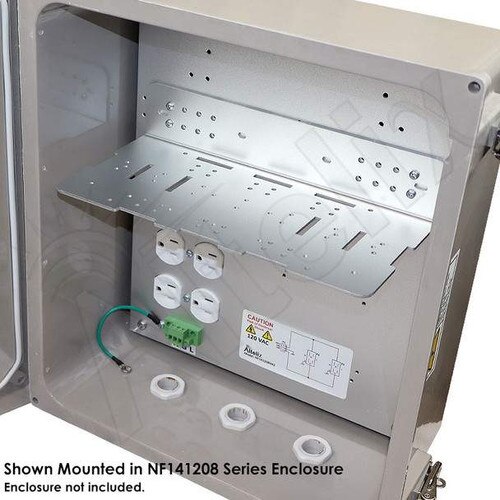

The Altelix NF1412xx 120VAC powered FRP enclosure series feature an aluminum equipment mounting plate that is pre-drilled and tapped with the holes required to mount the shelf. For those installations, use the #6-32 screws included in the accessory kit. The following enclosures feature these pre-drilled aluminum equipment mounting plates:

Available with Height Adjustable Universal Mounting Brackets
This utility shelf is also available with Altelix's Adjustable Universal Mounting Brackets. These height adjustable brackets can be used to secure a wide rangle equipment to the shelf. Multiple locations in the shelf are provide to attach these brackets.

Features

• Heavy Duty Aluminum Construction
• Threaded and Non-Threaded Holes for Mounting Equipment
• Provisions for Hook-and-Loop Strap

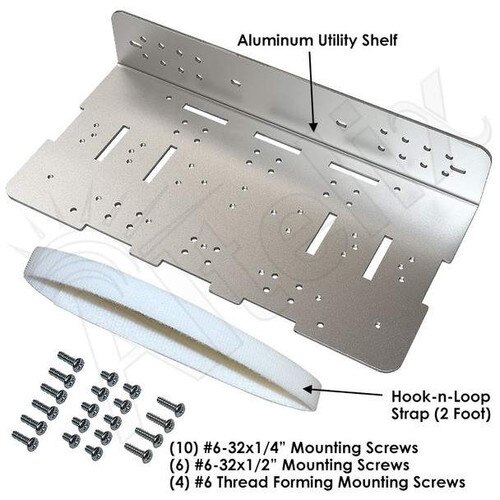

• Includes Shelf, Hook-and-Loop Mounting Strap and Mounting Screws

Applications

• Secure Non-Mountable Devices in Enclosures or Equipment Closets and Racks
