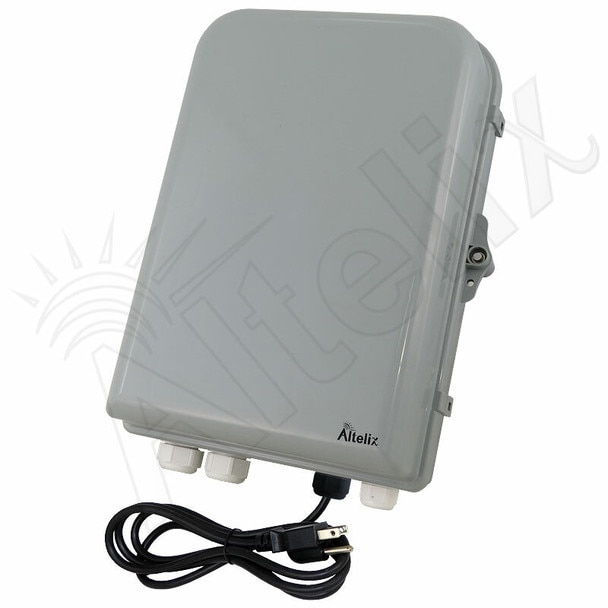

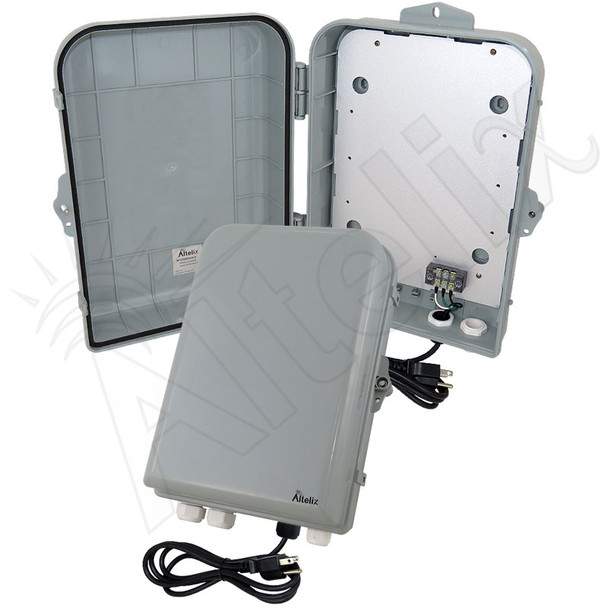

  • Altelix NP151005A1C-0 - 15x10x5 NEMA 4X Polycarbonate + ABS Weatherproof Enclosure with Aluminum Mounting Plate, 120 VAC Terminal Block & Power Cord

Altelix NP151005A1C-0 - 15x10x5 NEMA 4X Polycarbonate + ABS Weatherproof Enclosure with Aluminum Mounting Plate, 120 VAC Terminal Block & Power Cord

  • Brand: Altelix
  • P\N: NP151005A1C-0
(0)No Reviews yet

Availability: Backorder


Your Price: $79.99

Do you have questions?

Please contact our experts for assistance.

Description

NEMA 4X Weatherproof Polycarbonate + ABS Construction For Extreme Durability

The Altelix NP151005A1C-0 Plastic Utility Enclosure is an industrial quality general purpose weatherproof utility box designed to offer extreme protection for wiring, electronics and wireless devices in harsh environments. It is designed for applications that do not require internal AC power outlets.

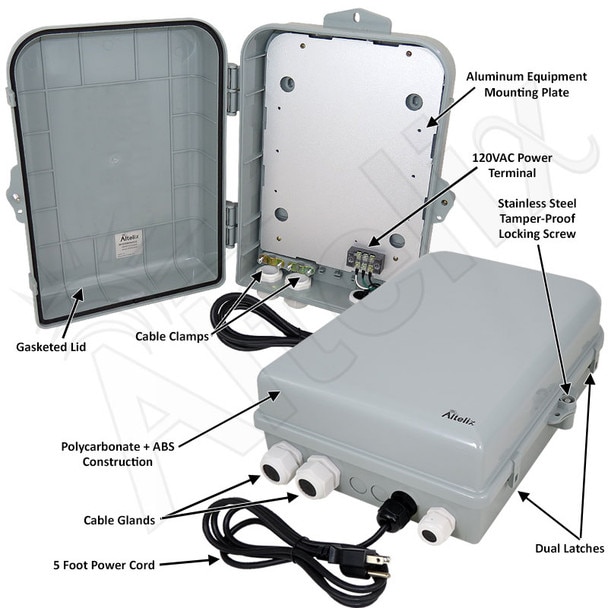

Construction and Features
This enclosure includes a 2.0mm thick finished aluminum equipment mounting plate. The enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. It meets or exceeds NEMA 31, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.

Power
This configuration consists of the PC+ABS NEMA enclosure with hinged lid and a 1.5mm thick aluminum plate with a 120VAC power terminal block for hardwiring equipment power cords. A 5 foot pre-wired power cord is included to power the enclosure, so no additional wiring is required. A cable gland on the enclosure allows cables to be connected to internal devices. Additional cable glands are also provided on the enclosure for additional wiring. Extra cable grommets are included with the accessory kit.

Complete with Cable Glands and Wire Management Straps
This enclosure includes 3 weatherproof cable glands. Simply punch out the seal, run your cable, and hand tighten for a water-tight seal. For convenience, the included accessory kit contains wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.

Features

  • Features a 1.5mm Thick Finished Aluminum Equipment Mounting Plate with 120VAC Power Terminal Block
  • Pre-wired 5 Foot Power Cord
  • Includes Cable Glands, Zip Ties, Hook & Loop Straps, Wall Mount Hardware
  • Meets NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66
  • Weatherproof and UV Stable
  • Durable Polycarbonate + ABS
  • RF Transparent for Wireless Devices
  • Gasketed Lid
  • Tamper-Proof Locking Screw with Key and Provision for Padlock
  • External Dimensions: 15.8 x 11.4 x 5.0 Inches (401 x 290 x 126 mm)
  • Internal Dimensions: 9.8 x 8.0 x 4.0 Inches (248 x 203 x 101 mm)

Applications

  • Multi Purpose Plastic Utility Box
  • Data Wiring and Fiber Optic
  • Cable TV Connections
  • Broadband Demarc Enclosure
  • Low Voltage Wiring Junction Box
  • Outdoor Speaker Wiring
  • LED Controllers
  • IoT Devices
  • WiFi Gear
  • Security and Surveillance Systems
  • Outdoor Weather Protection
  • Protection Against Theft or Damage
  • Warehouses and Public Areas
  • Concealment of Equipment
