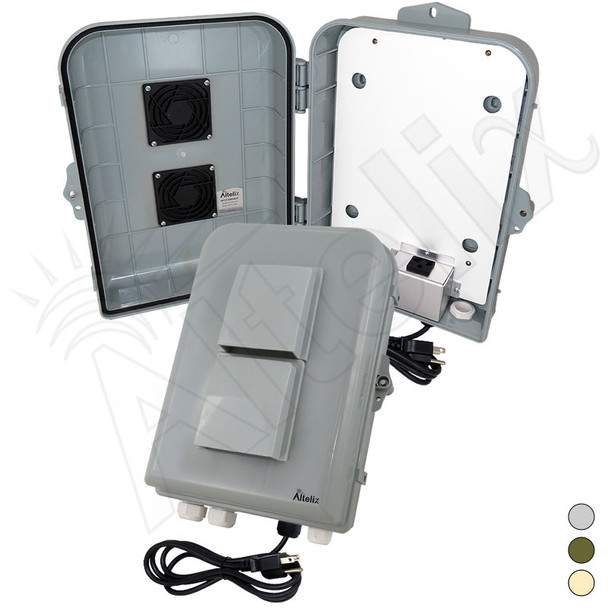

Altelix NP151005VMA1C - 15x10x5 Polycarbonate + ABS Vented RF Transparent Outdoor WiFi Enclosure with No-Drill PVC Equipment Mounting Plate, 120 VAC Outlet & Power Cord

Altelix 15x10x5 Polycarbonate + ABS Vented RF Transparent Outdoor WiFi Enclosure with No-Drill PVC Equipment Mounting Plate, 120 VAC Outlet & Power Cord (NP151005VMA1C)

Vented Weatherproof Polycarbonate + ABS Construction For Extreme Durability

The Altelix NP151005VMA1C features two 3" inch air vents covered by rain shields, with cleanable screens. It is ideal for protecting small devices from harsh environments and tampering, while allowing ventilation for installed equipment or batteries.

Construction and Features
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. It meets or exceeds NEMA 3R, 3RX and IP24. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.

Power
This configuration consists of the PC+ABS NEMA enclosure with hinged lid and a non-metallic equipment mounting plate with a 120VAC power outlet. A 5 foot pre-wired power cord is included to power the enclosure, so no additional wiring is required. A cable gland on the enclosure allows cables to be connected to internal devices. Additional cable glands are also provided on the enclosure for additional wiring.

No-Drill Non-Metallic Equipment Plate
This configuration consists of the PC+ABS enclosure with hinged lid and a 1/4" thick non-metallic PVC plate for mounting and securing equipment. Due to the "No-Drill" design of this PVC plate, mounting radios and other equipment can be done simply by using self-tapping screws.

RF Transparent Design
The NP151005VMA1C is ideal for WiFi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere with the radio's operation. The size of this enclosure will fit a wide range of popular wireless points on the market.

Complete with Cable Glands and Wire Management Straps
This enclosure includes 3 weatherproof cable glands. Simply punch out the seal, run your cable, and hand tighten for a water-tight seal. For convenience, the included accessory kit contains wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.

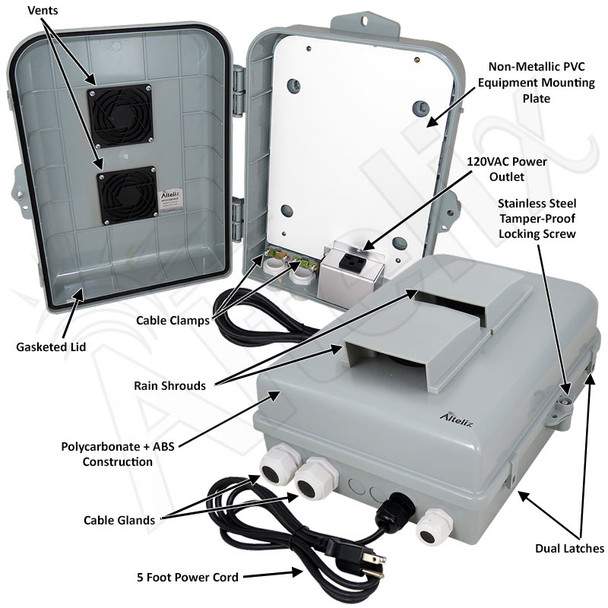

Features

• Two (2) 3" Vents with Rain Shields and Screens
• Features a No-Drill PVC Non-Metallic Equipment Mounting Plate – Mount your equipment securely without the need for drilling!
• Pre-Wired 120VAC Power Outlet
• Pre-wired 5 Foot Power Cord
• Includes Cable Glands, Zip Ties, Hook & Loop Straps, Wall Mount Hardware
• Meets NEMA 3R, 3RX and IP24
• Weatherproof and UV Stable
• Durable Polycarbonate + ABS
• RF Transparent for Wireless Devices
• Gasketed Lid
• Tamper-Proof Locking Screw with Key and Provision for Padlock
• External Dimensions: 15.8 x 11.4 x 6.2 Inches (401 x 290 x 158 mm)
• Internal Dimensions: 9.0 x 8.0 x 3.8 Inches (229 x 203 x 97 mm)

Applications

• Multi Purpose Plastic Utility Box
• Data Wiring and Fiber Optic
• Cable TV Connections
• Broadband Demarc Enclosure
• Low Voltage Wiring Junction Box
• Outdoor Speaker Wiring
• LED Controllers
• IoT Devices
• WiFi Gear
• Security and Surveillance Systems
• Outdoor Weather Protection
• Protection Against Theft or Damage
• Warehouses and Public Areas
• Concealment of Equipment
