Altelix NF162012P - 16x20x12 Fiberglass Weatherproof NEMA 4X Enclosure with Blank Aluminum Equipment Mounting Plate

Altelix 16x20X12 Fiberglass Weatherproof NEMA 4X Enclosure with Blank Aluminum Equipment Mounting Plate (NF162012P)

Extreme Protection Built to Last

The Altelix NF162012P Series Enclosures are designed with all the same rugged components as the NF201612 Series enclosures but feature a sideways opening door. This makes these enclosures ideal for locations not suitable for taller enclosures. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.

Increased Interior Space
The NF162012 series enclosures feature an extra deep lid, over 3 inches deep. With the generous size of this enclosure and extended lid the NF162012P can accommodate a wide range of equipment as well as 19" wide equipment racks. Six raised bosses with threaded brass inserts are provided inside the enclosure for mounting equipment plates and equipment brackets.

Also Available in 20”x16"x12” Configuration
This enclosure is also available in a 20"x16”x12” configuration. For more information see NF201612P.

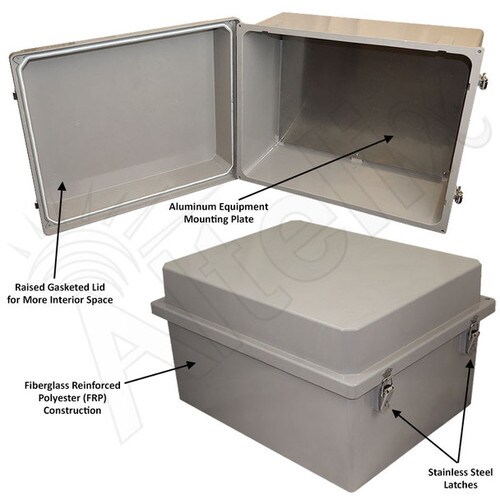

Aluminum Equipment Mounting Plate
This enclosure features an easy to drill aluminum equipment mounting plate. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

Mounting

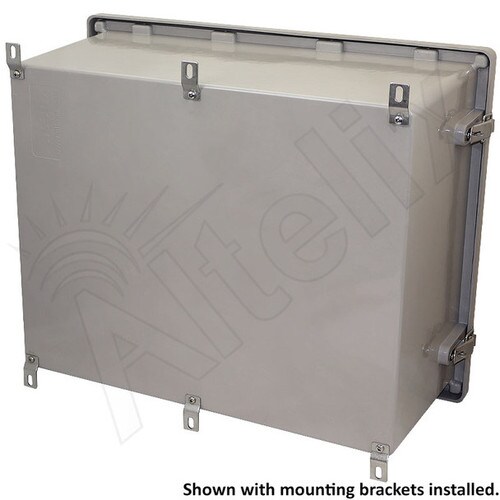

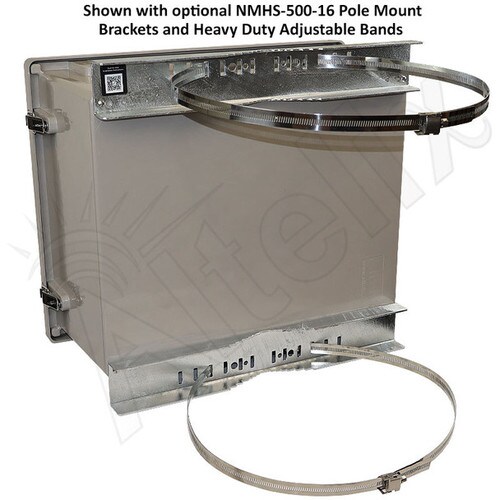

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Features

• New 16x20x12 Size Ideal for Wider Equipment as well as 19" Wide Equipment Racks!
• Includes Easy to Drill Blank Aluminum Equipment Mounting Plate
• Water Resistant JIC Enclosure Design with Gasketed Lid
• Extra Deep Extended Lid for Increased Equipment Clearance
• Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
• Stainless Steel Hinges with High Quality 316 Steel Hinge Pins
• Stainless Steel Quick Release Latches with Padlock Hasps
• Fiberglass Reinforced Polyester, FRP
• Weatherproof, UV Stable and Highly Corrosion Resistant
• Includes Stainless Steel Mounting Feet
• RF Transparent Enclosure
• Pole Mounting Kit Available

Applications

• Rapid Deployment Systems
• Harsh Environments
• WiFi Enclosure
• 19" Wide Equipment Racks
• RFID Reader Enclosure
• IoT Sensors
• SCADA Remote Terminal Unit
• Security and Surveillance Systems
• Solar Equipment Enclosure
• Outdoor use of Indoor Equipment
• Protection from Vandalism
• Concealment of Electronic Equipment
• Building Automation Controls
• Industrial Controls Enclosure
