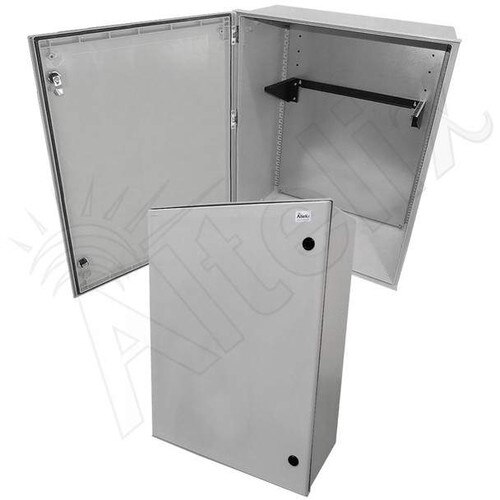

Altelix NFC322412-RV4U - 32x24x12 19" Wide 4U Vertical Rack Fiberglass Weatherproof NEMA Enclosure

The Altelix NFC322412P-RV4U 19" 4U Vertical Rack Weatherproof NEMA Enclosure with Galvanized Steel Equipment Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

Construction and Features

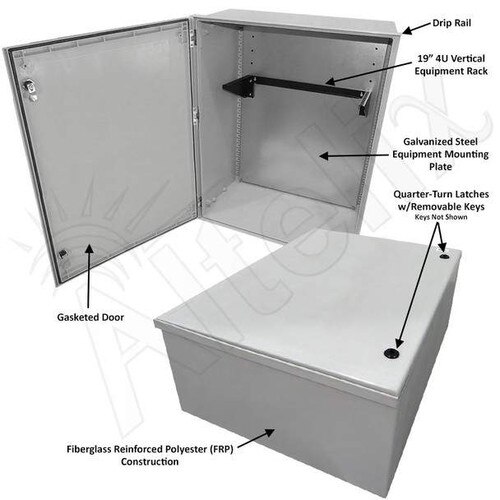

This rugged IP65 rated enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The lockable door features reinforced hinges and dual quarter-turn latches to secure the enclosure and is locked and unlocked using the included removable keys. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet.

This base configuration consists of the fiberglass enclosure with hinged lid. It can be drilled and modified by the installer to suit unique site requirements.

Bonus Aluminum Bottle Opener Key
This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $9.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

Internal 4U 19" Vertical Equipment Rack
The NFC322412P-RV4U features a standard 19" 4U vertical equipment rack. It is designed to accommodate a wide range of equipment such as network switches, rack mount audio/video equipment and most other rack mountable equipment. The rack frame mounts to a 16 Gauge (1.5mm thick) galvanized steel plate which can also be drilled and modified by the installer to unique site requirements. Multiple mounting positions for the rack are provided to accommodate a wide range of equipment sizes.

Installation Note: The max. depth of the 4U rack is 28.2" (717.55mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.

Mounting
Four mounting feet are included so that the enclosure can be securely mounted to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel (model NMKS-600-08) and stainless steel (model NMKX-600-08).

Optional Lockable Latches
For additional protection of internal equipment installed, three lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. Similar to the HN-0005, the HN-0001 has an interlock feature that traps the key when it is in the unlocked position. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). All of these optional lockable latches are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.

Features

• Heavy Duty Fiberglass Reinforced Polyester (FRP) Construction
• Includes 19" 4U Vertical Rack Frame and Blank Galvanized Steel Equipment Mounting Plate
• Multiple Rack Frame Mounting Locations to Accommodate Various Size Equipment
• Dual Quarter-Turn Door Latches
• Bonus Aluminum Bottle Opener Key Now Included!
• (4) Mounting Feet Included
• NEMA Type 3, 3X / IP65 Rated
• Optional Lockable Latch Sets Available

Applications

• 19" Rack Mountable Equipment
• Rack Mount UPS Systems
• Indoor / Outdoor Electrical and Electronic Equipment
• Rack Mount Audio/Video Equipment
• Rack Mount Amplifiers and PA System Amplifiers
• Ethernet Switches
• Networking Equipment
• Industrial Controls and Components
• Security and Surveillance Systems
• Outdoor use of Indoor Equipment
• Protection of Equipment from Theft or Damage
