Altelix NMKG-220-08 - Pole Mount Kit for NP131004, NP151005, NF108006 & NF100808 NEMA Enclosures

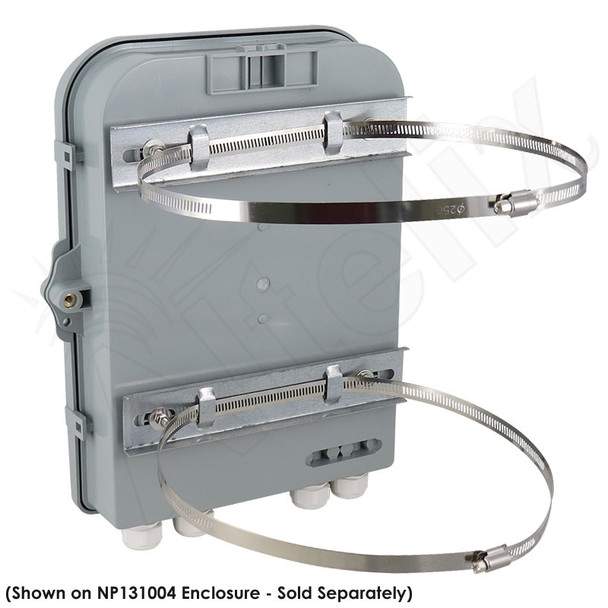

The Altelix NMKG-220-08 Pole Mount Kit easily attaches to the rear of our NP131004 and NP151005 ABS series and NF100806 FRP series NEMA enclosures. This pole mount kit allows the enclosures to be mounted to poles up to 7.6 inches (194.5mm) in diameter. The mounting brackets are constructed from 0.04" (1mm) thick galvanized steel for all weather applications.

Optional adjustable stainless steel bands can also be purchased for the following pole sizes:

• Poles 2.0 to 4.0 inches (50.8 to 101.6mm) in diameter
• Poles 2.0 to 13.0 inches (50.8 to 330.2mm) in diameter
• Poles 2.0 to 17.5 inches (50.8 to 444.5mm) in diameter

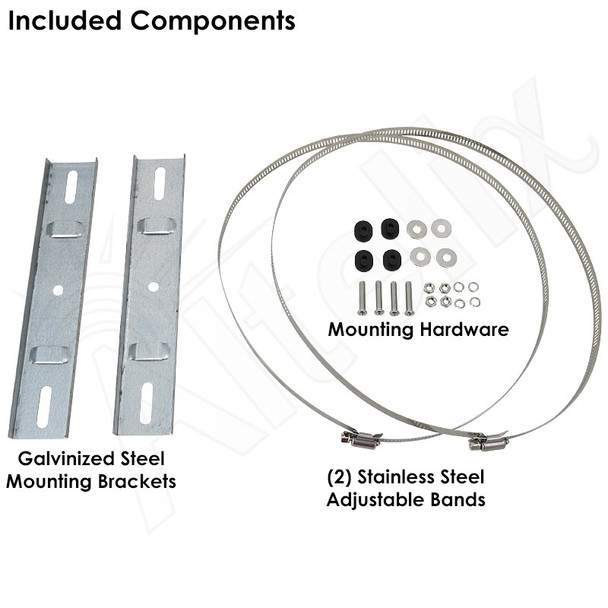

The NMKG-220-08 kit includes (2) galvanized steel mounting brackets, (2) stainless steel adjustable bands and mounting hardware with rubber sealing washers to ensure proper seal.

The NMKG-220-08 is for use with the following enclosures:

• NP131004
• NP151005
• NF100806

Features:

• Galvanized Steel Mounting Brackets
• Includes (2) Stainless Steel Adjustable Mounting Bands

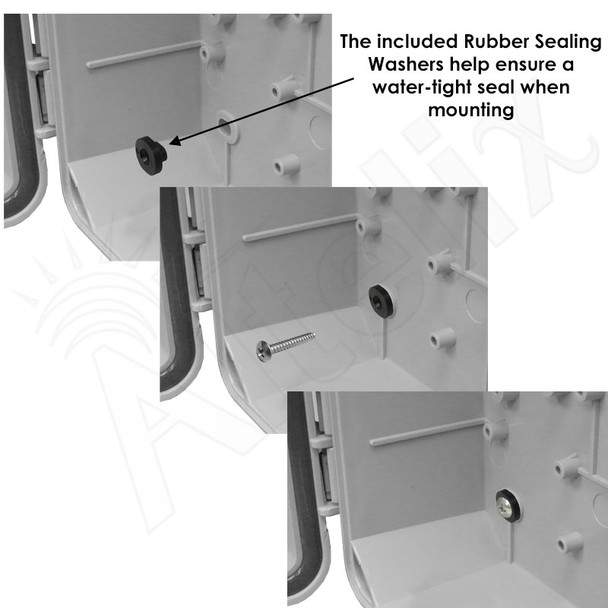

• Included Rubber Sealing Washers Help Keep Enclosure Water-Tight
• Easily Attaches to Rear of Enclosure

Applications:

• Pole Mount Installations
• Fence Posts
• Fits NP131004, NP151005 and NF100806 Series Enclosures
