Altelix NHM16A-FA1C - Power Module with 120VAC Outlets and Cooling Fan for NS161608, NX161608, NS201612, NX201612 and NS241612 Enclosures
- Brand: Altelix
- P\N: NHM16A-FA1C
Do you have questions?
Please contact our experts for assistance.
Description
Description
The Altelix NHM16A-FA1C Power Module with 120VAC Outlet and Cooling Fan is designed for use with the Altelix NS Series painted steel enclosures and NX Series stainless steel enclosures. This power module is a direct replacement for the steel access panel included with the NS enclosures.
Power Module

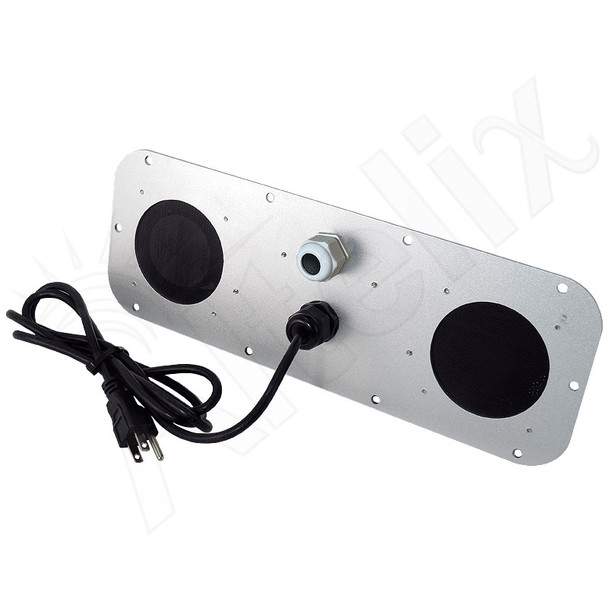

The NHM16A-FA1C is constructed from 0.10" (2.5mm) thick aluminum and features a pre-wired duplex 120VAC power outlet and a pre-wired 5 foot power cord, so no additional wiring is required.
Dual Cooling Fans Ventilation

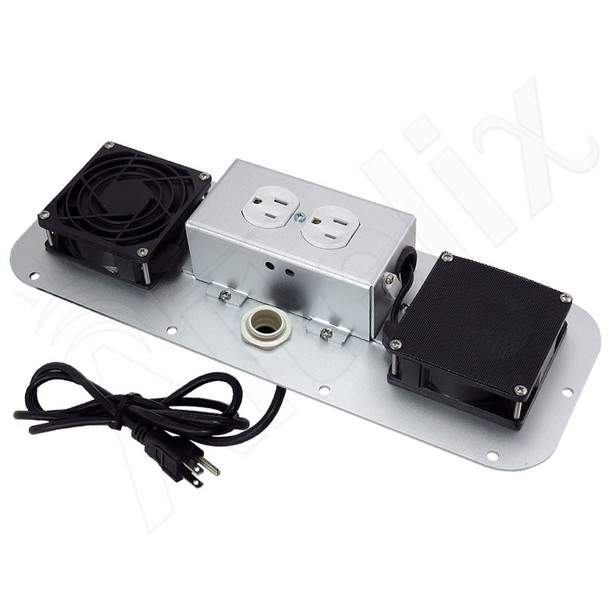

This power module features dual 3" vents and dual thermostat controlled cooling fans. The low noise, high airflow fans helps maintain lower internal temperatures by allowing air to be either pushed or pulled through the enclosure. The fans turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Both fans are wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use.
The NHM16A-FA1C is for use with the following enclosures:
- NS161608 Series
- NX161608 Series
- NS201612 Series
- NX201612 Series
- NS241612 Series
Panel Material | Aluminum |
Panel Thickness | 0.10 in. (2.5 mm) |
Voltage | 120VAC |
Power Cord Length | 5 Feet (1.5m) |
Cooling Fans Turn-On Temperature | 100°F (38°C) |
Cooling Fans Turn-Off Temperature | 79°F (26°C) |
Hole Diameter for Cable Gland | 0.875 in. (22.2 mm) |
Cable Gland - Cable Diameter Range* | 0.1" to 0.3" (2.5 to 7.6mm) |
Max. Connector Size That Can Pass Through Cable Gland | 0.5" (12.7mm) Wide |
*Note: For applications requiring larger cable diameters, the Altelix cable gland can be replaced with a standard PG-16 cable gland. |
