Altelix NFC241609VFA1C-SNS2 - Weatherproof Fan Cooled Fiberglass Enclosure for Dual SONOS® AMP, SONOS® PORT and SONOS® Connect:Amp™

Altelix Weatherproof Fan Cooled Fiberglass Enclosure for Dual SONOS® AMP, SONOS® PORT and SONOS® Connect:Amp™ (NFC241609VFA1C-SNS2)

The Altelix NFC241609VFA1C-SNS2 Enclosure is a weatherproof fan-cooled enclosure designed to provide indoor or outdoor protection for up to two (2) SONOS® AMP, SONOS® PORT or SONOS® Connect:Amp™.

Install Your SONOS® Equipment Securely Outdoors

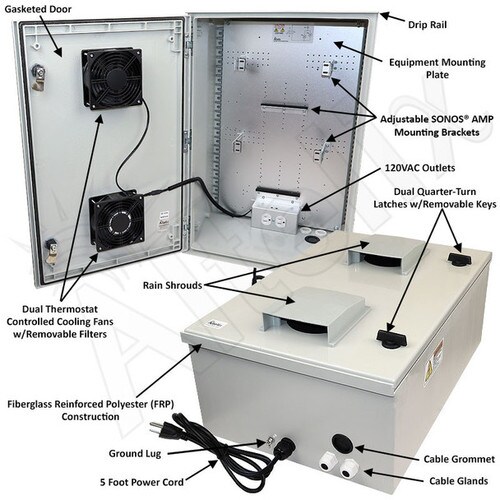

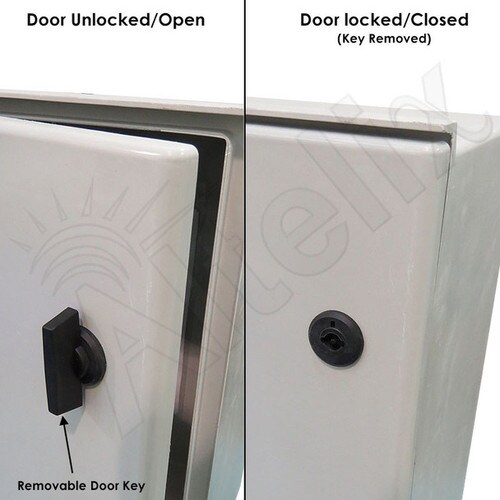

This rugged enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The lockable door features reinforced hinges and dual quarter-turn latches to secure the enclosure and is locked and unlocked using the included removable keys. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet.

Securely Mount Two SONOS® Amps in a Single Enclosure

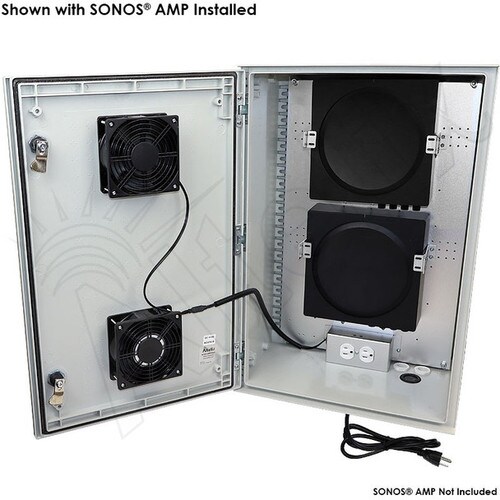

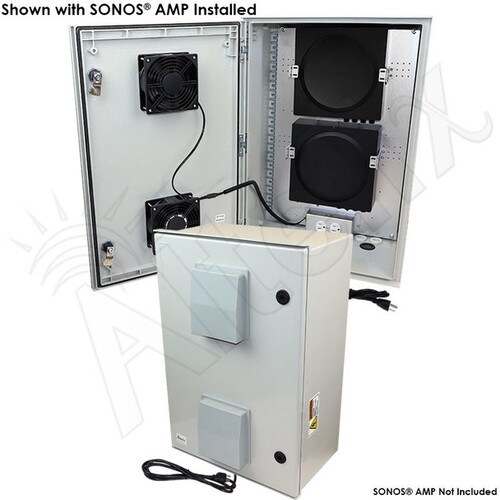

This enclosure features a versatile adjustable mounting system that allows two (2) SONOS® AMP, SONOS® PORT or SONOS® Connect:Amp™ to be installed inside the enclosure.

Plug and Play

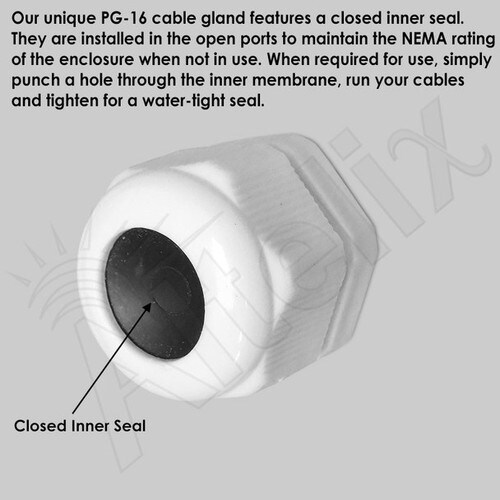

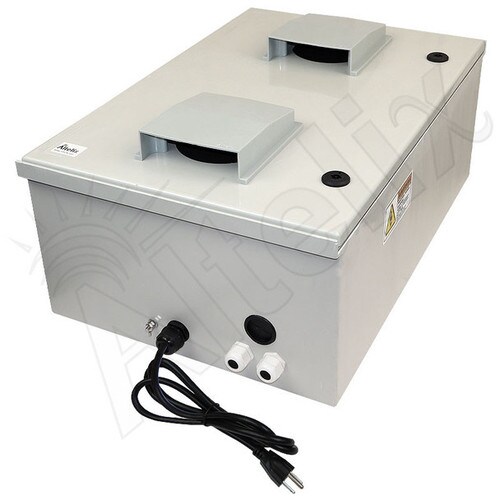

The NFC241609VFA1C-SNS2 features a 5 foot pre-wired power cord to provide power to the two (2) internal 120VAC outlets, so no additional wiring is required. Simply mount the enclosure then plug the power cord into a 120VAC outlet. Two cable glands are provided for use with Ethernet cables. A large cable grommet is also provided to use with speaker cables.

Dual Cooling Fans Ventilation

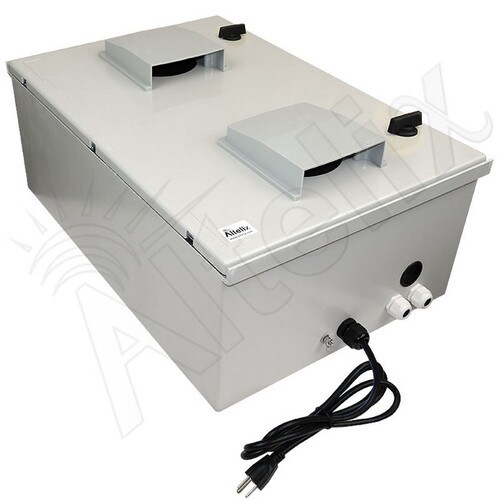

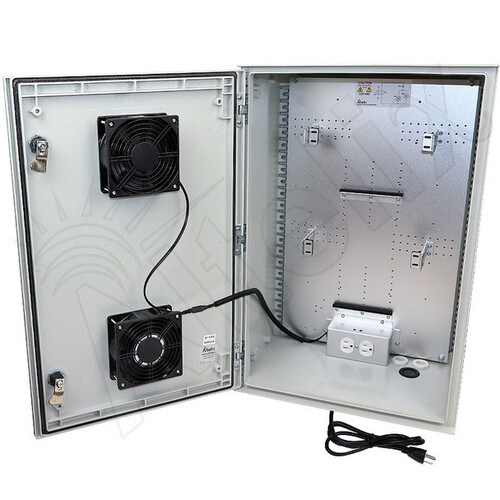

This enclosure features dual 4" vents and dual thermostat controlled cooling fans. The low noise, high airflow fans help maintain lower internal temperatures by allowing air to be either pushed or pulled through the enclosure. The fans turn on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Both fans are wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure, and the internal aluminum mesh filters are removable for cleaning.

Mounting
Four mounting feet are included so that the enclosure can be securely mounted to a wall or other structure. Optional flange and pole mounting kits are also available, see accessories when adding to the cart.

Optional Lockable Latches
For additional protection of internal equipment installed, three lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. Similar to the HN-0005, the HN-0001 has an interlock feature that traps the key when it is in the unlocked position. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). All of these optional lockable latches are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.

Customization
This enclosure is one of many standard models available. Our lineup includes enclosures specifically tailored for WiFi equipment, DIN Mount Industrial Controls, POTS Telephones, IP Phones, Device Charging Stations, Security & Safety Equipment, Building & Home Automation and More.

We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

SONOS® and Connect:Amp™ are trademarks or registered trademarks of SONOS, Inc.

Features

• Designed to fit up to two (2) SONOS® AMP, SONOS® PORT or SONOS® Connect:Amp™
• Dual thermostat controlled cooling fans to expel heat
• Heavy duty Fiberglass Reinforced Polyester (FRP) construction
• Includes adjustable brackets for mounting SONOS® equipment
• Pre-wired 120VAC Outlets with 5 foot power cord
• Dual quarter-turn door latches with removable keys
• (4) mounting feet included
• NEMA type 3R, 3RX / IP24 rated
• Optional lockable latch sets available

Applications

• SONOS® AMP (newest version)
• SONOS® PORT
• SONOS® Connect:Amp™
• Pool side, backyard audio/video entertainment systems
• Outdoor hotel and hospitality audio/video entertainment systems
• Marine audio entertainment systems
• Protection of Equipment from Theft or Damage
