Altelix Weatherproof Vented WiFi PoE Enclosure for TP-Link® EAP650 AX3000 WiFi 6 Access Point

Protect Your TP-Link® EAP650 WiFi 6 Access Point

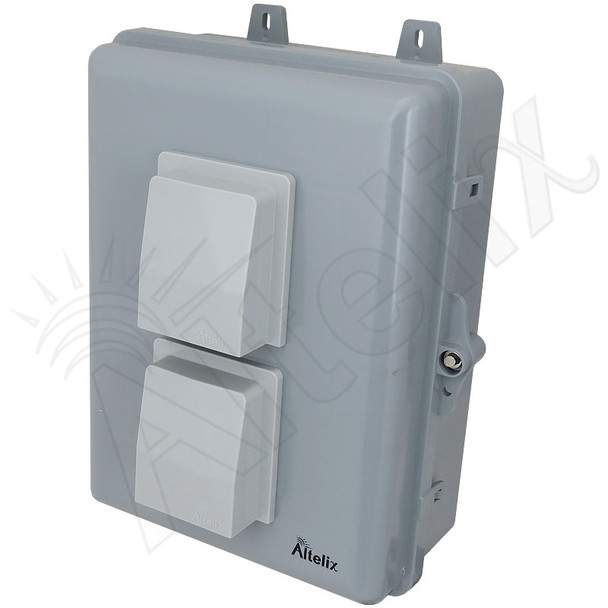

The Altelix NP12V-TPL2 is a vented weatherproof enclosure designed to provide added security, vandalism and protection from harsh environments, while allowing ventilation for the TP-Link® EAP650 AX3000 WiFi 6 access point. It features two 2¼" inch air vents with rain shields and screens. This enclosure is for installations powering the TP-Link® EAP650 AX3000 via Power-Over-Ethernet (PoE). This is ideal for remote locations where power is not available.

Install Your TP-Link® EAP650 Securely

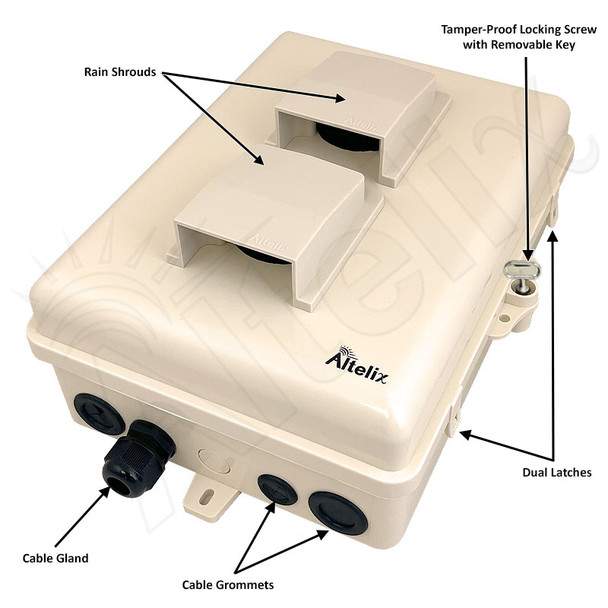

This sleek enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. Integrated mounting feet simplify installation. It meets or exceeds NEMA 3R, 3RX and IP24.

Plug and Play Setup

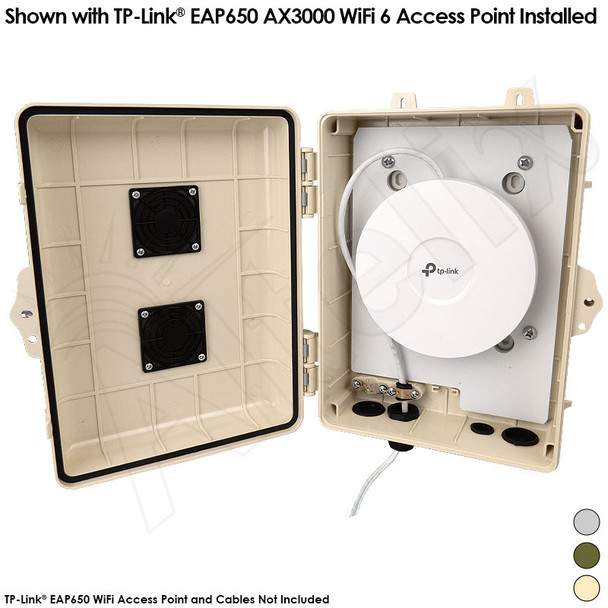

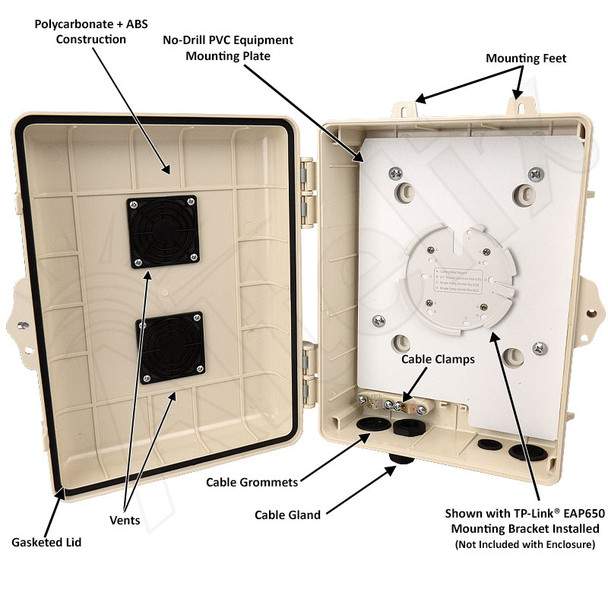

The NP12V-TPL2 enclosure provides easy plug-n-play installation. Simply attach the mounting bracket included with the TP-Link® EAP650 to the equipment mounting plate. The equipment mounting plate is pre-drilled so no tools are need other then a screw driver. A cable gland on the enclosure allow a pre-terminated data/power cable to be connected to the device.

RF Transparent Design
The non-metallic design of the enclosure and bracket is RF transparent and will not interfere with the WiFi signal range or coverage pattern.

Complete with Cable Grommets and Glands and Wire Management Straps
For convenience, the included accessory kit contains cable grommets and glands, wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.

Mounting
The external mounting feet on the NP12V-TPL2 allows it to be easily wall mounted with the included hardware. For added security, mounting the enclosure using the internal mount feet can prevent the enclosure from being removed when locked. A pole mounting kit is also available for this enclosure. The NMKG-150-08 attaches to the rear of the enclosure and allows it to be mounted to poles and fence posts up to 9.5 inches in diameter.

Features

• Designed to fit the TP-Link® EAP650 AX3000 WiFi 6 Access Point
• Plug-and-Play Design, Easy to Install
• Two (2) 2¼" Vents with Rain Shields and Screens
• Features a RF Transparent PVC Non-Metallic Equipment Mounting Plate
• Includes Cable Glands and Grommets Zip Ties, Cable Management Straps and Wall Mounting Hardware
• Meets NEMA 3R, 3RX and IP24
• Weatherproof and UV Stable Durable Polycarbonate + ABS Construction
• Gasketed Lid featuring a Tamper-Proof Locking Screw with Key and Provision for Padlock
• Integral Mounting Feet
• Optional Pole Mount Kit Available

Applications

• Protection of the TP-Link® EAP650 from Theft or Damage
• Power Over Ethernet PoE Installations
• Indoor or Outdoor Installations
• Concealment of Equipment
• Deployment of Hospitality Wireless Networks
• Retail and Commercial Wireless Networks
