KP Performance YA14KPPD-S 900MHz Yagi 14dBi - Single (YA14KPPD-S)
- Brand: KP Performance
- P\N: YA14KPPD-S
Live Chat
Contact Us
Description
Description

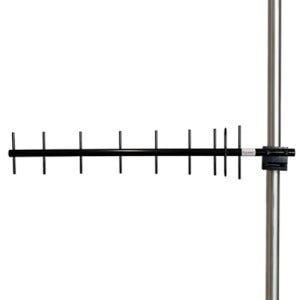

KP PERFORMANCE YA14KPPD-S 900MHZ YAGI 14DBI - SINGLE
| Frequency Range: | 850 MHz to 928 MHz |
| Polarization Type: | Horizontal or Vertical |
| Gain: | 14.5 dBi |
| Vertical Beamwidth: | 45° |
| Horizontal Beamwidth: | 40° |
| F/B Ratio: | 25 dB |
| VSWR: | 1.7:1 | 2.1:1 max |
| Connector Type: | Type N Female |
The KP Performance YA14KPPD single pol Yagi Antennas are manufactured using high strength 6061-T6 aluminum to withstand heavy ice, high wind and other harsh conditions. These yagi antennas operate in the 900 MHz spectrum and are specially designed for NLOS applications. These yagi antennas offer 15 dBi gain.
All elements on this yagi antenna are compression crimped into the boom (not riveted) which eliminates misalignment and fastener problems. Our 900 MHz yagi antennas are engineered and field tested for superior tree penetration and performance like no other yagi antenna on the market. The entire antenna is powder coated for durability, ice build up prevention and corrosion resistance. An integrated antenna and radio mounting bracket is supplied which easily permits horizontal or vertical polarization.
Features
Elements and boom are manufactured from aircraft quality 6061-T6 aluminum for optimum strength
Antenna is corrosion and fade resistance with a 5 year fade and salt guarantee
Antenna is assembled with stainless steel hardware
Comes with a double st
