Altelix NF141208AU - 14x12x8 Fiberglass Weatherproof NEMA Enclosure with 100-240 VAC Universal Power Outlet

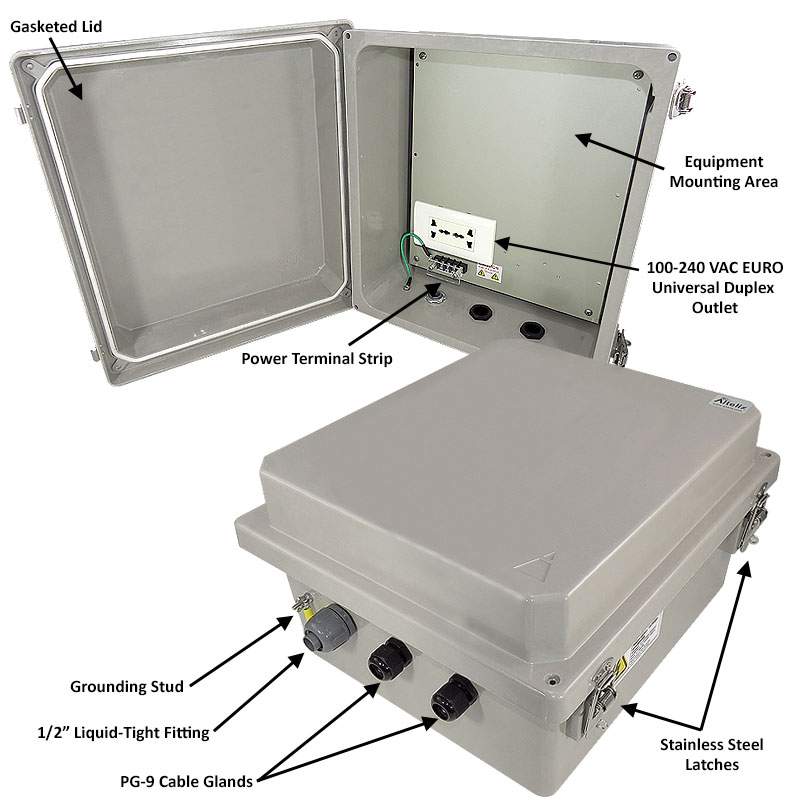

The Altelix NF141208AU NEMA 4X Weatherproof Enclosure with 100-240VAC Universal Power Outlet and Aluminum Equipment Plate is ideal for protecting equipment from harsh environments and tampering. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. It features a stainless steel continuous door hinge and stainless steel latches with provision for padlocks. The door is fully gasketed making this enclosure suitable for use indoors or outdoors.
This enclosure is 8 inches deep and features an extended lid for an increased equipment clearance. This configuration consists of the fiberglass NEMA enclosure with hinged lid and a 2.5mm thick finished aluminum plate with a pre-wired 100-240VAC duplex universal power outlet supporting multiple international power standards. A terminal strip and ground lug are provided for simplified wiring on-site. One 1/2" liquid-tight gland is provided for the AC supply along with two PG9 cable glands for low voltage wiring. This enclosure is designed to operate at the following voltages:

• 110VAC 50/60Hz
• 115VAC 50/60Hz
• 220VAC 50/60Hz
• 230VAC 50/60Hz
• 240VAC 50/60Hz

Designed for worldwide operation, the universal 100-240 VAC power outlet is compatible with the following countries' plug types: UK/Ireland BS 1363 - Italy CEI 23-16/VII - Denmark Afsnit 107-2-D1 - Euro plug (2-pin) CEE 7/16 - India BS 546. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements. Four removable stainless steel mounting feet are included so that the enclosure can be securely mounted to a wall or other structure. Great for use in applications such as Worldwide Operation, Indoor / Outdoor WiFi Equipment, SCADA Remote Terminal Unit, Security and Surveillance Systems, Outdoor use of Indoor Equipment, Protection of Equipment from Theft or Damage, and Concealment of Electronic Equipment.
Key Features

• Water Resistant Design
• Fiberglass Reinforced Polyester, FRP
• Stainless Steel Latches with Padlock Hasps
• Includes Aluminum Equipment Mounting Plate with Universal 100-240VAC Duplex Outlets
• (4) Stainless Steel Mounting Feet Included
• NEMA Type 4, 4X / IP66 Rated
