Altelix NFC161608-DIN - 16x16x8 Industrial DIN Rail Enclosure Fiberglass NEMA 3X IP65

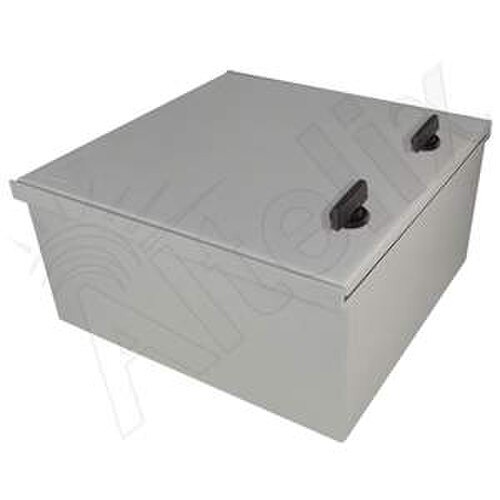

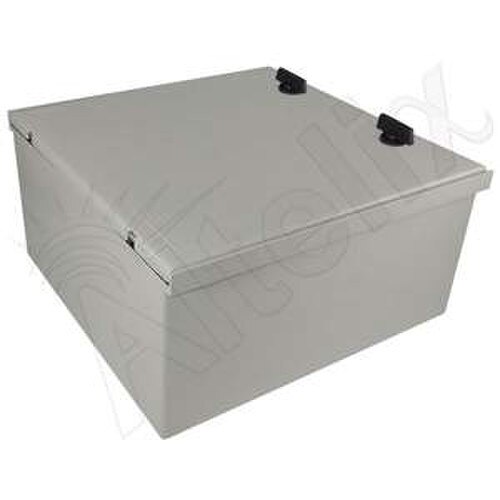

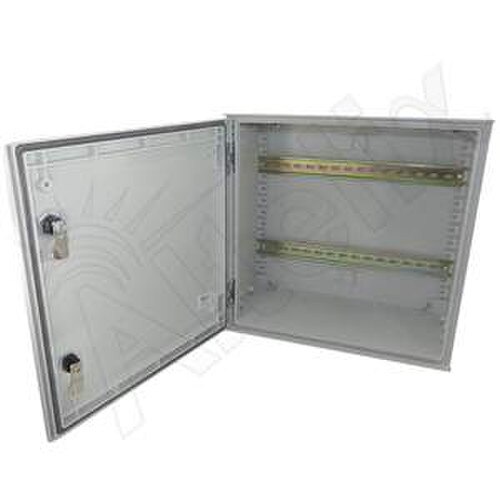

The Altelix NEMA 3X Weatherproof Industrial DIN Rail Enclosure is an industrial quality fiberglass enclosure ideal for protecting DIN rail mounted equipment from harsh environments and tampering. The outside dimensions are 15.8 x 15.8 x 8.0 Inches (401 x 401 x 203 mm) and the usable interior dimensions are 14.6 x 15.2 x 7.5 Inches (371 x 386 x 190 mm). Included in the enclosure are two 15" long 20-gauge steel 35mm top hat DIN rails. They are easily installed to the interior of the enclosure without drilling using the integral T-nut mounting system. The mounting system is molded into the interior of the enclosure and runs the full length of the enclosure from top to bottom.
This rugged IP65 NEMA 3X rated enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is open. The enclosure can be drilled and modified by the installer to suit unique site requirements. The enclosure is also RF transparent to support wireless devices.
This enclosure is ideal for use in applications such as DIN rail mount equipment, industrial controls, building automation, agricultural controls, environmental monitoring stations, SCADA remote terminal, DIN mount power relays and terminals, security and surveillance equipment, access controls, protection of equipment from theft or damage, and more.
Key Features

• Heavy-duty fiberglass reinforced polyester construction
• Includes dual quarter-turn door latches, two 35mm top hat DIN rails and mounting hardware, and 4 mounting feet
• 12 integral T-nut mounting rail positions
• Corrosion resistant and dent proof
• RF transparent for wireless equipment
