Altelix NFC201608M - 20x16x8 NEMA 3X Fiberglass Indoor / Outdoor RF Transparent WiFi Access Point Enclosure with Non-Metallic Equipment Mounting Plate
- Brand: Altelix
- P\N: NFC201608M
Live Chat
Contact Us
Description
Description

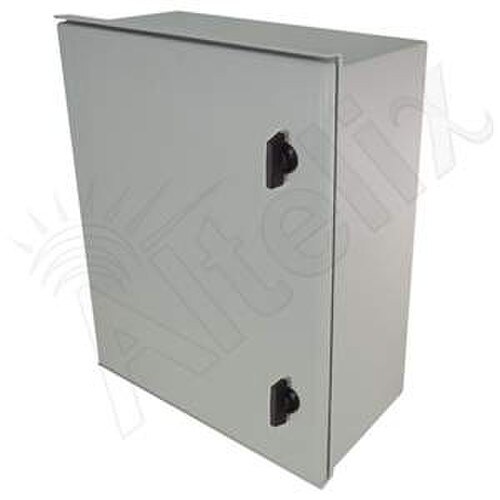

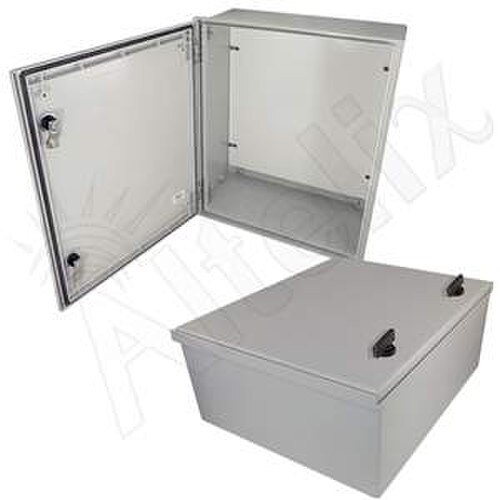

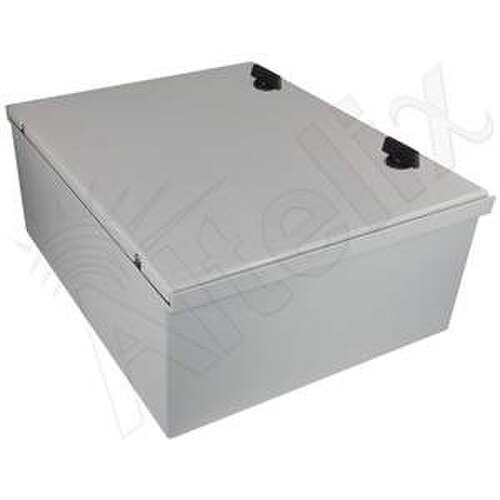

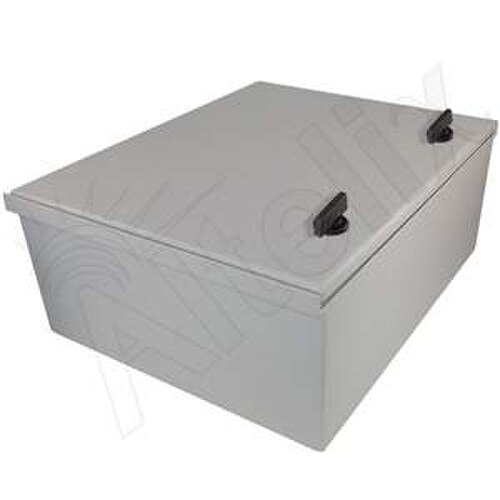

The Altelix 20" x 16" x 8" NEMA 3X Weatherproof Enclosure with Non-Metallic Equipment Plate is ideal for protecting equipment from harsh environments and tampering. Any equipment designed for indoor use can now be located outside. This rugged enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet.

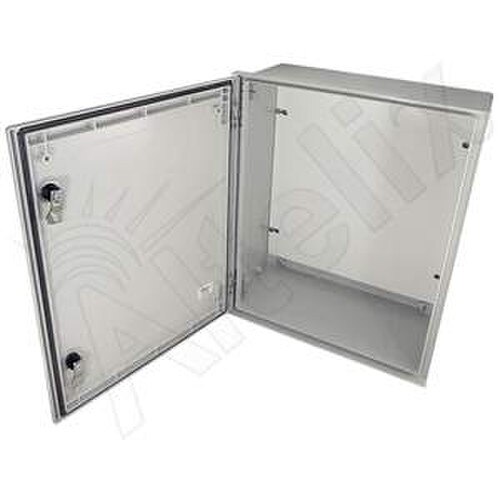

This configuration consists of the fiberglass enclosure with a hinged lid and a 0.12" non-metallic polyester plate for mounting and securing equipment. It can be drilled and modified by the installer to suit unique site requirements. This enclosure is ideal for Wi-Fi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere with the radio's operation. In addition, mounting radios to the mounting plate can be done by simply using self-tapping screws. It fits a wide range of popular wireless access points currently on the market.
Molded into the interior of the enclosure is a versatile mounting system can be used to mount different size and types of equipment mounting plates as well as DIN rails without modifying the enclosure. Designed for use with T-Nuts, they run the full length of the enclosure from top to bottom. This mounting system provides the flexibility needed when configuring the enclosure for specific user requirements. For use in applications such as indoor/outdoor Wi-Fi equipment, SCADA remote terminal unit, security and surveillance systems, outdoor use of indoor equipment, protection of equipment from theft or damage, concealment, and more.
Key Features
This configuration consists of the fiberglass enclosure with a hinged lid and a 0.12" non-metallic polyester plate for mounting and securing equipment. It can be drilled and modified by the installer to suit unique site requirements. This enclosure is ideal for Wi-Fi applications. The non-metallic design of both the enclosure and equipment mounting plate will not interfere with the radio's operation. In addition, mounting radios to the mounting plate can be done by simply using self-tapping screws. It fits a wide range of popular wireless access points currently on the market.
Molded into the interior of the enclosure is a versatile mounting system can be used to mount different size and types of equipment mounting plates as well as DIN rails without modifying the enclosure. Designed for use with T-Nuts, they run the full length of the enclosure from top to bottom. This mounting system provides the flexibility needed when configuring the enclosure for specific user requirements. For use in applications such as indoor/outdoor Wi-Fi equipment, SCADA remote terminal unit, security and surveillance systems, outdoor use of indoor equipment, protection of equipment from theft or damage, concealment, and more.
Key Features
- Includes blank non-metallic polyester equipment mounting plate
- RF transparent for Wi-Fi access points
- Integral T-nut mounting system
- Heavy-duty fiberglass reinforced polyester

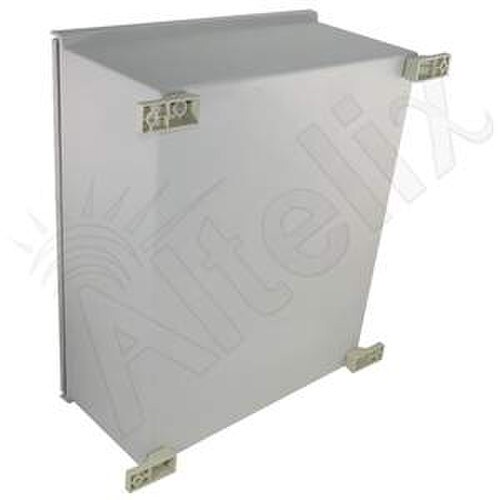

- Dual quarter-turn door latches and 4 mounting feet included
- NEMA Type 3R, 3RX / IP65 rated
