Atlona 3-Input HD Video Scaler for HDMI and VGA Signals (AT-HD-SC-500)

  • Brand: Atlona
  • P\N: AT-HD-SC-500
  • UPC: 846352004668
(0)No Reviews yet

Availability: In Stock

Your Price: $500.00

Do you have questions?

Please contact our experts for assistance.

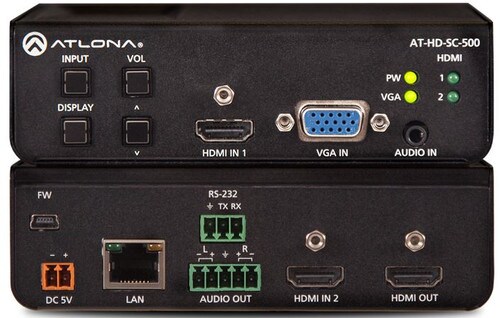

The Atlona AT-HD-SC-500 is a 3—1 switcher and HD scaler with two HDMI inputs and a VGA input with audio. It is designed to take video signals from switches, PCs, or laptops, and scale them to an HDMI output at a wide range of resolutions and rates, up to 1080p @ 60 Hz and 1920—1200. The HD-SC-500 can serve as the central component of a compact, automated AV system with the convenience of automatic input selection and display control. It enables input selection, volume, and display on/off control from the front panel or external RS-232 or TCP/IP commands. The HD-SC-500 incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces.
The HD-SC-500 offers advanced scaling capabilities including image adjustment capability and an auto-set feature for matching incoming signals to the displays native resolution. Integrated scaling helps optimize image quality and switching performance. This switcher and scaler also feature audio de-embedding, and third-party TCP/IP and RS-232 control of the scaler and display.
Surface mounting brackets are provided with the HD-SC-500 for easy under-table, furniture, or on-wall installation.
Key Features:
  • 3—1 switcher with two HDMI inputs and one VGA input
  • HD video scaler with HDMI output and input resolution control
  • Automatic input selection and automatic display control
  • Front panel input selection, display on/off, and volume control
  • TCP/IP and RS-232 control
  • Audio de-embedding
  • On-screen display with front panel menu controls
