Blonder Tongue HE-12 Series Agile Audio/Video Demodulator (MIDM-806C)
- Brand: Blonder Tongue
- P\N: MIDM-806C
Description
Description

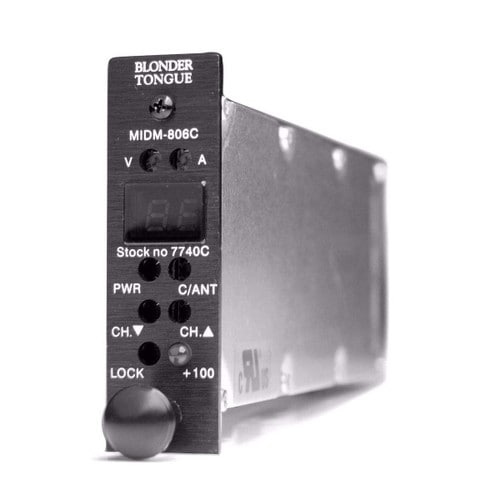

Blonder Tongue MIDM-806C HE-12 Series Agile Audio/Video Demodulator
Best For
The Blonder Tongue MIDM-806C is an HE-12 series agile audio/video demodulator that demodulates any channel from 54 to 806 MHz.
Why Choose the MIDM-806C?
It is a double-conversion CATV 'cherry picker' demodulator in a single-width die-cast chassis, so up to 12 units fit in a MIRC-12 chassis. It demodulates standard, IRC and HRC channels, selects channels with an LED display and provides baseband audio and video outputs. It is compatible with the MICM-45 modulator.
Key Benefits
- Demodulates any channel 54-806 MHz
- Agile channel selection with LED display
- Double-conversion cherry-picker demodulator
- Single-width die-cast chassis, 12 per MIRC-12
- Standard, IRC and HRC channels
- Baseband audio and video outputs
Who Should Buy the MIDM-806C?
Headend technicians who need this module for a Blonder Tongue headend and have confirmed compatibility with their chassis and channel plan.
Specifications
- Brand: Blonder Tongue
- Type: agile A/V demodulator
- Frequency: 54-806 MHz
- Mounting: single-width, up to 12 in a MIRC-12 chassis
- Outputs: baseband audio and video
- Pairs with: MICM-45 modulator
