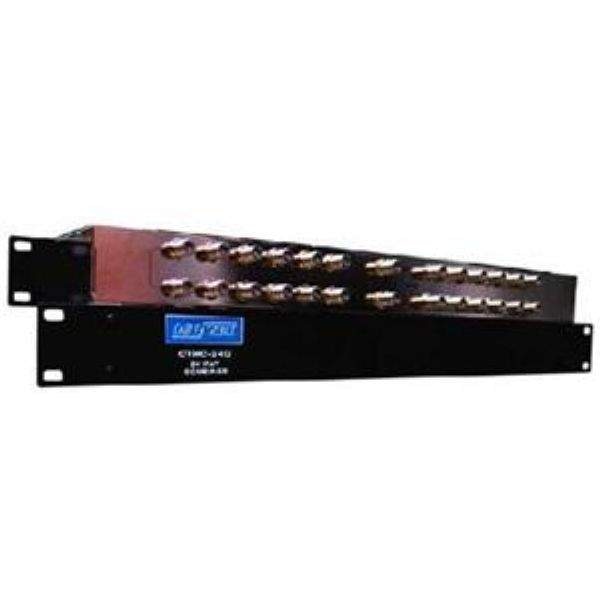

CableTronix Passive Headend 24-Port Combiner (CTHC-24G)

CableTronix Passive Headend 24-Port Combiner (CTHC-24G)

The CTHC-24G is a professional quality 24-port passive output combiner designed for commercial grade, private cable networks employing multiple modulators and processing equipment. Quality design engineering and manufacturing are reflected in the CTHC-24G’s port-to-port isolation figures as well as the unit’s insertion loss specifications. Input and output return loss figures contribute to the CTHC-24G’s highly competitive specs. The CTHC-24G is 19” rack mountable, and withstand environmental temperatures up to 122° F. Support for 24 devices, compelling performance specifications, and installation flexibility makes the CTHC-24G an outstanding value.

Application

Commercial grade headends where the signals from multiple modulators and processors must be combined and distributed as RF over a cable distribution network.

• Supports up to 24 modulators and/or processors
• Broad frequency range of 40 – 1000 MHz supporting virtually all cable network services
• Excellent port-to-port signal isolation, insertion loss, and input/output return loss figures to ensure excellent signal reproduction
• -20 dB test port
• Excellent value
