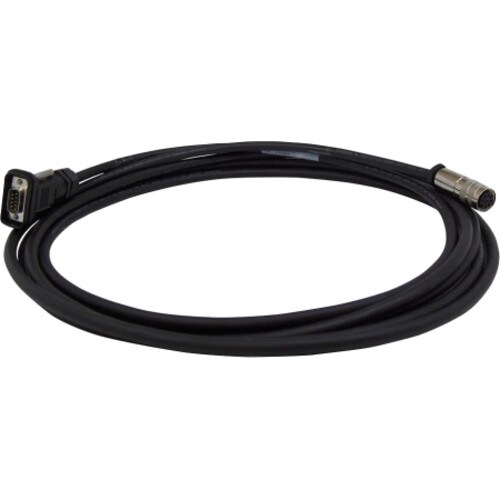

CommScope 10m RET Cable with Male DB9 and Female AISG Connector (ATCB-DB9-010)

Introducing the CommScope 10m RET Cable with Male DB9 and Female AISG Connector (ATCB-DB9-010)

Upgrade your antenna system with the high-quality CommScope 10m RET Cable, designed to provide seamless connectivity between your Remote Radio Heads (RRH) and RET actuators. This durable and reliable cable ensures optimal performance, making it the perfect choice for professionals who demand the best in their communication systems.

Key Features and Benefits

• Directly connects RET actuator with RRH (Remote Radio Heads) with DB9 connector
• Feeds data and power to RET system components
• High-quality construction for long-lasting durability
• Compliant with AISG 1.1 and AISG 2.0 protocols
• Operating temperature range of -40 °C to +70 °C (-40 °F to +158 °F)
• UV resistant and corrosion tested for outdoor use
• CE, ROHS, and REACH-SVHC compliant

Technical Specifications

• AISG Connector A: 8-pin DIN Female, IEC 60130-9 standard
• Connector B: 9-pin D-sub Male
• Data Conductor Type: 0.24 mm² (24 AWG) twisted pair
• Power Conductor Type: 0.82 mm² (18 AWG) stranded
• Length: 10 m | 32.808 ft
• Diameter Over Jacket: 8 mm | 0.315 in
• Voltage, maximum: 300 V
• Operating Temperature: -40 °C to +70 °C (-40 °F to +158 °F)
• Relative Humidity: Up to 100%
• Ingress Protection: IP67
• Weight, net: 0.9 kg | 1.984 lb

With the CommScope 10m RET Cable, you can trust that your antenna system will perform at its best, even in the most demanding conditions. The cable's high-quality construction ensures durability and reliability, while its compliance with various industry standards guarantees safe and efficient operation.

Whether you're upgrading your existing system or installing a new one, the CommScope 10m RET Cable with Male DB9 and Female AISG Connector (ATCB-DB9-010) is the ideal choice for professionals who demand the best in their communication systems.

Don't settle for less – invest in the CommScope 10m RET Cable today and experience the difference in quality and performance that only CommScope can provide.
