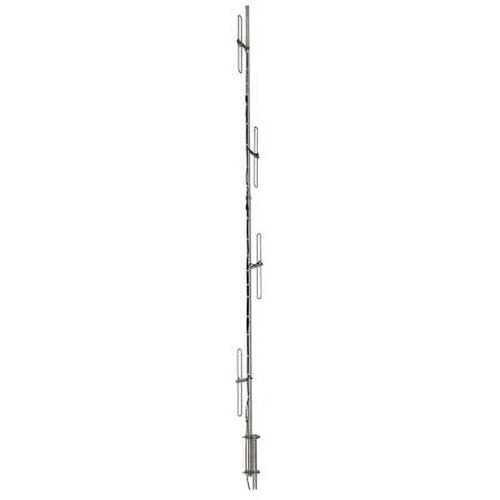

CommScope 164-174MHz 6/9dB Exposed Dipole Omni Antenna (DB224-C)
- Brand: CommScope
- P\N: DB224-C
- UPC: 729198756604
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
CommScope 164-174MHz 6/9dB Exposed Dipole Omni Antenna (DB224-C)
ANDREW's DB224-C covers the 164 – 174 MHz omni, exposed dipole antenna. This field adjustable VHF omni antenna has a maximum power input of 500 W. A harness with N Male connection is included along with the DB365-OS pipe mount kit for 1.25 – 3.5 in OD round members. The omni pattern has a 6 dBd gain and the offset has 9 dBd gain.
The Andrew Solutions omni, exposed dipole antenna meets RoHS 2002/95/EC.
Specifications
| Item Weight | 38 lbs. |
| Item Length | 255 inch |
| Gain dBd | 6 dBd |
| Gain dBi (dBi) | 8.1 dBi |
| Horizontal Beamwidth | 360 deg |
| Jumper Included | Yes |
| Maximum Power (W) | 500 |
| RF Connectors | N Male |
| Polarization | Vertical |
| Specific Frequency | 164-174 MHz |
| Vertical Beamwidth (Deg) | 16 |
| Maximum Rated Wind Velocity | 80 mile/h |
| Maximum VSWR | 1.5:1 |
| Tuned Frequency (MHz) | 164-174 |
| Connector Placement | Bottom |
| Antenna Pattern | Adjustable |
| Lightning Protection | DC Ground |
| Frequency Band | VHF |
