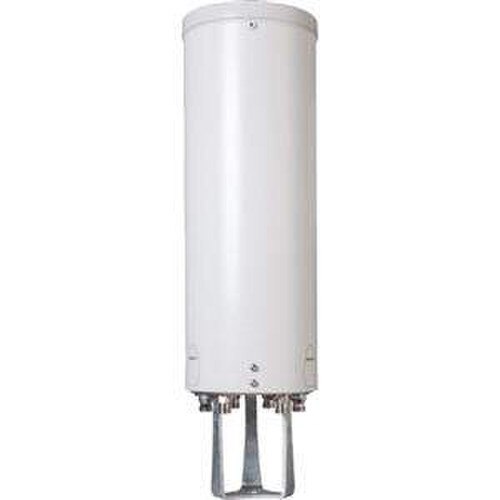

CommScope 1695-2690 MHz 6-Port Small Cell Antenna (3X-V65S-C3-3XR)

Introducing the CommScope 1695-2690 MHz 6-Port Small Cell Antenna (3X-V65S-C3-3XR)

Upgrade your network with the CommScope 1695-2690 MHz 6-Port Small Cell Antenna, a high-performance and versatile solution designed to meet the demands of today's wireless communication systems. This innovative antenna offers exceptional coverage and capacity, making it the perfect choice for professionals seeking to enhance their network capabilities.

Key Features and Benefits

• Three DualPol® antennas under one radome for optimal performance
• Fully integrated flange mounting system for easy installation
• Ideal concealment solution for areas with special regulations regarding visual impact
• 4.3-10 connector significantly improves PIM consistency and smaller footprint on antenna bottom

Technical Specifications

Designed with precision and durability in mind, the CommScope 1695-2690 MHz 6-Port Small Cell Antenna boasts a range of impressive technical specifications, including:

• Antenna Type: Small Cell
• Band: Single band
• Color: Light gray
• Grounding Type: RF connector inner conductor and body grounded to reflector and mounting bracket
• Performance Note: Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
• Radome Material: Fiberglass, UV resistant
• Radiator Material: Low loss circuit board
• Reflector Material: Aluminum
• RF Connector Interface: 4.3-10 Female
• RF Connector Location: Bottom
• RF Connector Quantity, high band: 6
• RF Connector Quantity, total: 6

Remote Electrical Tilt (RET) Information

Enhance your network's performance with the antenna's advanced RET capabilities, including:

• RET Interface: 8-pin DIN Male
• RET Interface, quantity: 1 male
• Input Voltage: 10–30 Vdc
• Internal RET: High band (3)
• Power Consumption, idle state, maximum: 2 W
• Power Consumption, normal conditions, maximum: 13 W
• Protocol: 3GPP/AISG 2.0 (Multi-RET)

With its impressive range of features and benefits, the CommScope 1695-2690 MHz 6-Port Small Cell Antenna is the ideal solution for professionals seeking to enhance their network capabilities. Don't miss out on this opportunity to upgrade your network with this cutting-edge antenna. Order yours today and experience the difference!
