CommScope 1710-2500MHz 13.9/14.9dBd Panel Sector Antenna (DB992HG28N-B)

  • Brand: CommScope
  • P\N: DB992HG28N-B
  • UPC: 646444707237
(0)No Reviews yet

Availability: Backorder


Your Price: $350.57

Do you have questions?

Please contact our experts for assistance.

Description

CommScope 1710-2500MHz 13.9/14.9dBd Panel Sector Antenna (DB992HG28N-B)

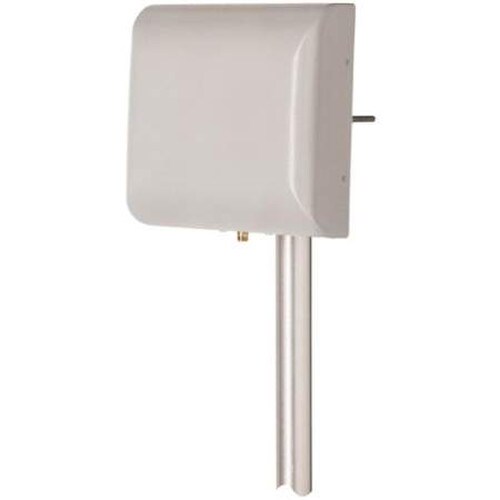

ANDREW's DB992HG28N-B is a flat panel sector antenna that operates in the 1710 – 2490 MHz frequency range. The gain is 13.9 dBd (1710 – 2170 MHz) and 14.9 gain (2170 – 2490 MHz). Maximum power input is 100 W with N Female connector located at the bottom of the antenna. This sector panel antenna includes the DB390 pipe mounting kit for 2.4 – 4.5 inch OD round members. The sector base antenna meets RoHS 2002/95/EC.

The Andrew Solutions sector base antennas are ideal for WiMAX applications in the 2.3 GHz, 2.5 GHz, 3.5 GHz, and 5.8 GHz bands. Featuring a high gain, this panel antenna is ideal for point-to-point and repeater applications. Measuring only 2.75 inch deep, these sector antennas incorporate Andrews exclusive flat radiator and transformer design. The small, lightweight design makes DB992HG28N-B perfect for use in areas where visual discretion is vital.

Specifications

Item Width12 inch
Item Height5 inch
Item Length12 inch
Item Weight3 lbs.
Gain dBd13.85 dBd
Horizontal Beamwidth28 deg
Jumper IncludedNo
Gain dBi (dBi)16 dBi
Maximum Power (W)100
PolarizationHorizontal, Vertical
RF ConnectorsN Female
Specific Frequency1710-2170 MHz, 2170-2490 MHz
Maximum Rated Wind Velocity125 milea/hour
Vertical Beamwidth (Deg)1.1
Minimum Front Back Ratio35 dB
Connector PlacementBottom
Electrical DowntiltFixed
Fixed Electrical Downtilt0 deg
Frequency BandAWS Multi-Band
