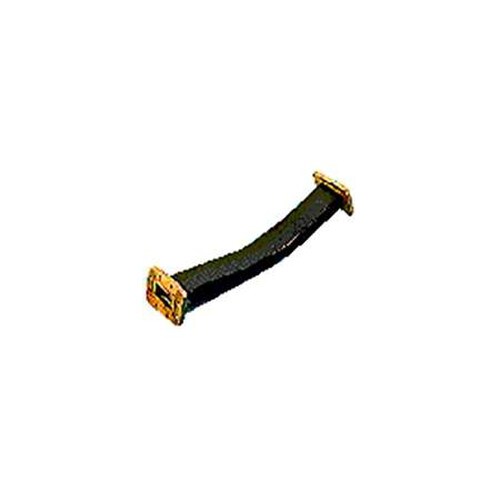

CommScope 24-Inch Twist-Flex CPR90G to CPR90G Interface (F090CCB2)

Introducing the CommScope 24-Inch Twist-Flex CPR90G to CPR90G Interface (F090CCB2)

Experience seamless connectivity and enhanced performance with the CommScope 24-Inch Twist-Flex CPR90G to CPR90G Interface (F090CCB2). Designed for professionals who demand the best, this high-quality rectangular waveguide flexible twist is perfect for use in the 10.7-11.7 GHz frequency band. With its FlexTwist® technology and CPR90G interfaces, this product ensures reliable and efficient transmission of signals, making it an essential addition to your communication system.

Key Features and Benefits

• Flexible Twist technology for easy installation and reduced signal loss
• Compatible with WR90, WG16, and R100 waveguide sizes
• Low attenuation of 0.43 dB/m for optimal signal transmission
• High average power handling of 960 W and peak power of 180 kW
• Impressive VSWR of 1.03 for minimal signal reflection
• Designed, manufactured, and distributed under ISO 9001:2015 quality management system
• Compliant with ROHS, CHINA-ROHS, REACH-SVHC, and UK-ROHS regulations

Technical Specifications

• Length: 600 mm | 23.622 in
• Minimum Bend Radius, Multiple Bends (E Plane): 64 mm | 2.52 in
• Minimum Bend Radius, Multiple Bends (H Plane): 127 mm | 5 in
• Maximum Twist: 310 °/m | 94.488 °/ft
• Pressurization, maximum: 0.31 N/mm² | 45 psi

With its exceptional performance and ease of installation, the CommScope 24-Inch Twist-Flex CPR90G to CPR90G Interface (F090CCB2) is the perfect solution for professionals looking to upgrade their communication systems. Its flexible design allows for multiple bends and twists, ensuring a secure and reliable connection even in challenging environments. Moreover, its compliance with various regulatory standards ensures that you are investing in a product that is both safe and environmentally friendly.

Don't settle for anything less than the best when it comes to your communication needs. Upgrade your system with the CommScope 24-Inch Twist-Flex CPR90G to CPR90G Interface (F090CCB2) today and experience the difference that quality and innovation can make. Order now and take advantage of this cutting-edge technology!
