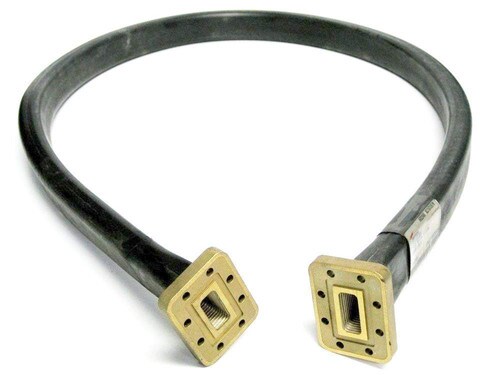

CommScope 24in Flexible Twist for WR137 Waveguide 5.8-8.2GHz (F137CES2)

Introducing the CommScope 24in Flexible Twist for WR137 Waveguide 5.8-8.2GHz (F137CES2)

Experience seamless connectivity and enhanced performance with the CommScope 24in Flexible Twist for WR137 Waveguide 5.8-8.2GHz (F137CES2). Designed to provide optimal signal transmission and flexibility, this high-quality waveguide is perfect for professionals seeking a reliable and efficient solution for their communication needs.

Key Features and Benefits

• Flexible twist design for easy installation and reduced signal loss
• Wide operating frequency band of 5.85 – 8.2 GHz for versatile applications
• High average power handling capacity of 2000 W for reliable performance
• Low attenuation rate of 0.3 dB/m for minimal signal degradation
• Robust construction with CPR137G and CMR137 interfaces for secure connections
• Compliant with ISO 9001:2015, ROHS, CHINA-ROHS, REACH-SVHC, and UK-ROHS standards for quality assurance

Technical Specifications

• Product Type: Rectangular waveguide, flexible twist
• Product Brand: FlexTwist®
• Component: Flexible Twist
• Interface: CPR137G
• Interface 2: CMR137
• Length: 600 mm | 23.622 in
• Waveguide Size: WR137 | WG14 | R70
• Attenuation: 0.3 dB/m | 0.091 dB/ft
• Average Power: 2000 W
• Operating Frequency Band: 5.85 – 8.2 GHz
• Peak Power: 500 kW
• VSWR: 1.100000023841858
• Minimum Bend Radius, Multiple Bends (E Plane): 102 mm | 4.016 in
• Minimum Bend Radius, Multiple Bends (H Plane): 204 mm | 8.031 in
• Maximum Twist: 214 °/m | 65.227 °/ft
• Pressurization, maximum: 0.207 N/mm² | 30 psi

With the CommScope 24in Flexible Twist for WR137 Waveguide 5.8-8.2GHz (F137CES2), you can trust in the quality and performance of your communication system. Its flexible design allows for easy installation and reduced signal loss, while the wide operating frequency band ensures compatibility with a variety of applications. The high average power handling capacity and low attenuation rate guarantee reliable performance and minimal signal degradation, making this waveguide an essential component for any professional communication setup.

Don't compromise on quality and performance – choose the CommScope 24in Flexible Twist for WR137 Waveguide 5.8-8.2GHz (F137CES2) for your communication needs. Upgrade your system today and experience the difference!
