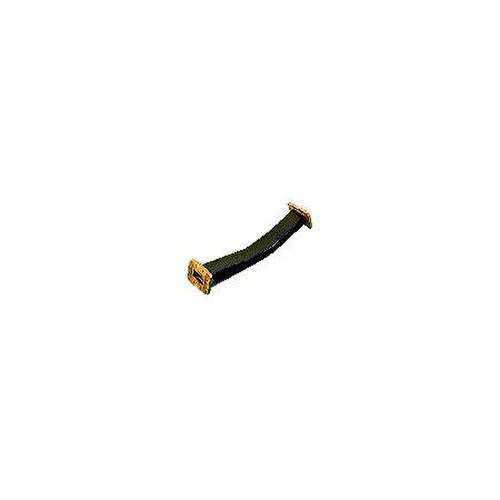

CommScope 35-Inch WR112 FlexTwist w/ CPR112G Interface (F112CCC3)

Introducing the CommScope 35-Inch WR112 FlexTwist with CPR112G Interface (F112CCC3)

Experience unparalleled performance and flexibility with the CommScope 35-Inch WR112 FlexTwist (F112CCC3), a state-of-the-art rectangular waveguide designed to enhance your communication systems. Crafted by the renowned brand FlexTwist®, this innovative product is perfect for professionals seeking a reliable and efficient solution for their antenna systems.

Key Features and Benefits

• High-quality FlexTwist® Flexible Twist for WR112, operating in the 7.125–8.5 GHz frequency band
• Compatible with interface types CPR112G and CPR112G, ensuring seamless integration with your existing setup
• Low attenuation rate of 0.4 dB/m, providing minimal signal loss for optimal performance
• Impressive average power handling capacity of 1260 W and peak power of 315 kW
• Compact and lightweight design, weighing only 2.88 lbs
• Compliant with ISO 9001:2015, ROHS, CHINA-ROHS, REACH-SVHC, and UK-ROHS standards

Technical Specifications

• Component: Flexible Twist
• Interface: CPR112G
• Interface 2: CPR112G
• Length: 900 mm | 35.433 in
• Waveguide Size: WR112 | WG15 | R84
• Attenuation: 0.4 dB/m | 0.122 dB/ft
• Average Power: 1260 W
• Operating Frequency Band: 7.125 – 8.5 GHz
• Peak Power: 315 kW
• VSWR: 1.0399999618530273
• Minimum Bend Radius, Multiple Bends (E Plane): 76 mm | 2.992 in
• Minimum Bend Radius, Multiple Bends (H Plane): 152 mm | 5.984 in
• Maximum Twist: 264 °/m | 80.467 °/ft
• Pressurization, maximum: 0.241 N/mm² | 35 psi

With the CommScope 35-Inch WR112 FlexTwist (F112CCC3), you can trust that your communication systems will operate at peak efficiency. Its advanced design and exceptional performance make it the ideal choice for professionals who demand the best in their antenna systems.

Don't settle for anything less than the best. Upgrade your communication systems with the CommScope 35-Inch WR112 FlexTwist (F112CCC3) today and experience the difference that quality and innovation can make. Order now and elevate your communication capabilities to new heights!
