CommScope 36-Inch Twist-Flex CPR90G Interface (F090CCB3)

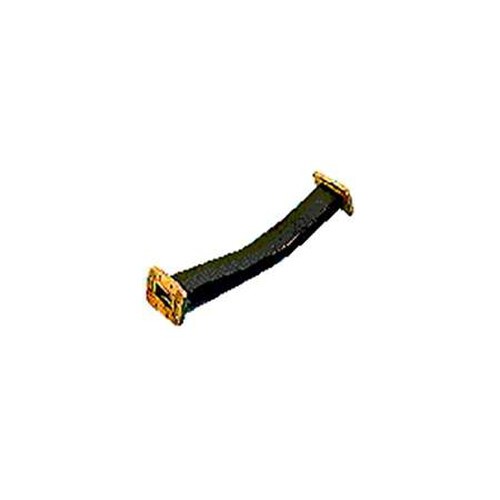

Introducing the CommScope 36-Inch Twist-Flex CPR90G Interface (F090CCB3)

Experience seamless connectivity and enhanced performance with the CommScope 36-Inch Twist-Flex CPR90G Interface (F090CCB3). Designed for professionals who demand the best, this high-quality rectangular waveguide flexible twist is perfect for a wide range of applications, from telecommunications to radar systems. With its FlexTwist® technology, the F090CCB3 ensures minimal signal loss and maximum efficiency, making it the ideal choice for your next project.

Key Features and Benefits

• Flexible Twist technology for easy installation and reduced signal loss
• Compatible with WR90, WG16, and R100 waveguide sizes
• Operating frequency band of 10.7 – 11.7 GHz for optimal performance
• High average power handling of 960 W and peak power of 180 kW
• Low VSWR of 1.03 for minimal signal reflection
• Compliant with ISO 9001:2015, RoHS, China-RoHS, REACH-SVHC, and UK-RoHS standards

Technical Specifications

• Component: Flexible Twist
• Interface: CPR90G
• Interface 2: CPR90G
• Length: 900 mm | 35.433 in
• Waveguide Size: WR90 | WG16 | R100
• Attenuation: 0.43 dB/m | 0.131 dB/ft
• Average Power: 960 W
• Operating Frequency Band: 10.7 – 11.7 GHz
• Peak Power: 180 kW
• VSWR: 1.03
• Minimum Bend Radius, Multiple Bends (E Plane): 64 mm | 2.52 in
• Minimum Bend Radius, Multiple Bends (H Plane): 127 mm | 5 in
• Maximum Twist: 310 °/m | 94.488 °/ft
• Pressurization, maximum: 0.31 N/mm² | 45 psi

With its impressive technical specifications and compliance with international standards, the CommScope 36-Inch Twist-Flex CPR90G Interface (F090CCB3) is the perfect solution for professionals seeking reliable and efficient waveguide connectivity. Its flexible design allows for easy installation and reduced signal loss, ensuring that your system operates at peak performance.

Don't settle for subpar waveguide components – invest in the CommScope 36-Inch Twist-Flex CPR90G Interface (F090CCB3) and experience the difference that FlexTwist® technology can make in your projects. Upgrade your connectivity today and enjoy the benefits of superior performance and reliability.
