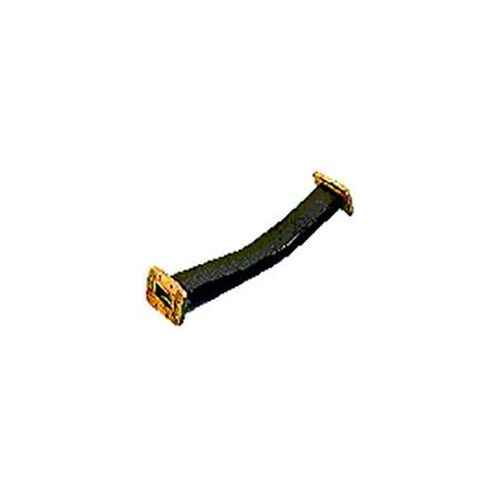

CommScope 36-Inch Twist-Flex w/ CPR90G Interface (F090CCS3)

Introducing the CommScope 36-Inch Twist-Flex with CPR90G Interface (F090CCS3)

Experience unparalleled flexibility and performance with the CommScope 36-Inch Twist-Flex w/ CPR90G Interface (F090CCS3). Designed for professionals who demand the best in waveguide technology, this FlexTwist® Flexible Twist for WR90 offers a seamless connection between 8.2–12.4 GHz frequency bands. With its robust construction and advanced features, this product is perfect for those who require a reliable and efficient solution for their communication needs.

Key Features and Benefits

• Flexible twist design for easy installation and reduced stress on waveguide systems
• High-quality CPR90G interface for secure and reliable connections
• Low attenuation and VSWR for optimal signal transmission
• High average and peak power handling capabilities
• Compliant with various regulatory standards, ensuring safety and quality

Technical Specifications

• Component: Flexible Twist
• Interface: CPR90G
• Interface 2: CPR90G
• Length: 900 mm | 35.433 in
• Waveguide Size: WR90 | WG16 | R100
• Attenuation: 0.43 dB/m | 0.131 dB/ft
• Average Power: 960 W
• Operating Frequency Band: 8.2 – 12.4 GHz
• Peak Power: 180 kW
• VSWR: 1.100000023841858
• Minimum Bend Radius, Multiple Bends (E Plane): 64 mm | 2.52 in
• Minimum Bend Radius, Multiple Bends (H Plane): 127 mm | 5 in
• Maximum Twist: 310 °/m | 94.488 °/ft
• Pressurization, maximum: 0.31 N/mm² | 45 psi

Designed, manufactured, and distributed under the ISO 9001:2015 quality management system, the CommScope 36-Inch Twist-Flex w/ CPR90G Interface (F090CCS3) is also compliant with ROHS, CHINA-ROHS, REACH-SVHC, and UK-ROHS regulations. This ensures that you are investing in a product that meets the highest standards of quality, safety, and environmental responsibility.

Upgrade your communication system with the CommScope 36-Inch Twist-Flex w/ CPR90G Interface (F090CCS3) and experience the difference in performance and reliability. Don't settle for less when it comes to your waveguide needs – choose the best with CommScope. Order now and elevate your communication capabilities to new heights!
