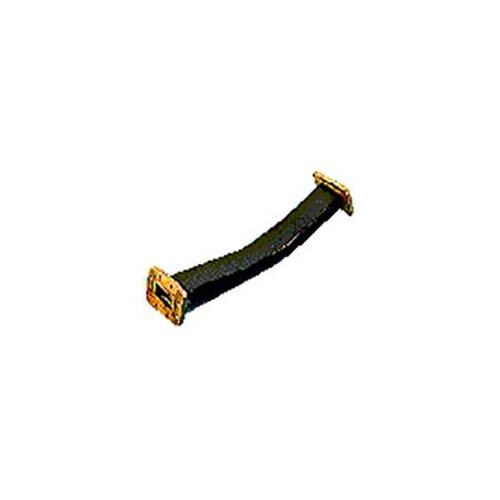

CommScope 47-Inch WR90 Twist-Flex CPR90G to PBR100 Interface (F090CKS5)

CommScope's FlexTwist is engineered to provide exceptional low-loss electrical performance. It is also designed for fast, accurate installation, even in the most challenging environments.
The FlexTwist's core is created by helically winding a silver-coated brass strip to form a continuous, uniform rectangular tube. A solder fillet is then wound around the core, creating a seal that eliminates RF and pressure leakage. A protective neoprene jacket provides additional mechanical support.
Controlled construction of the core results in an ideal form that provides repeatable return-loss and insertion-loss performance during flexing. The flex twist features a neoprene jacket that provides environmental and mechanical protection. Each purchase includes a three-year manufacturer warranty.
Key Features

• Designed to provide exceptional low-loss electrical performance
• Has a 1.10 VSWR
• Features CPR90G to PBR100 interface
• Neoprene jacket is highly resistant to oil and other fluids, as well as to ozone attack
• EIA Size: WR75
• Frequency Range: 8.2-12.4 GHz

Special Order. Non-Cancellable and Non-Returnable
