CommScope 698-960 MHz DualPol Teletilt Antenna (LRX-8512DS-VTM)
- Brand: CommScope
- P\N: LRX-8512DS-VTM
- UPC: 646444467636
Live Chat
Contact Us
Description
CommScope 698-960 MHz DualPol Teletilt Antenna (LRX-8512DS-VTM)
COMMSCOPE's LRX-8512DS-VTM 698 – 960 MHz dual polarization, Teletilt antenna. 85 deg. horizontal beamwidth, RET compatible
Features and Benefits
- Broadband, providing future-ready single antenna for application in 700 MHz and existing 850 MHz cellular operation
- Ideal solution for dense urban, suburban site applications
- Excellent solution for site sharing and maximizing capacity
Specifications
| tem Width | 11.9 inch |
| Item Height | 7.1 inch |
| Item Length | 50.9 inch |
| Item Weight | 30 lb |
| Gain dBd | 11.35 dBd, 11.75 dBd, 11.85 dBd |
| Horizontal Beamwidth | 85 deg |
| Jumper Included | No |
| Gain dBi (dBi) | 13.5 dBi, 13.9 dBi, 14 dBi |
| Maximum Power (W) | 400 |
| Polarization | +/- 45 Degrees |
| RF Connectors | 7/16 DIN Female |
| Specific Frequency | 698-806 MHz, 806-896 MHz, 870-960 MHz |
| Maximum Rated Wind Velocity | 150 mile/hour |
| Vertical Beamwidth (Deg) | 15.3, 16.8, 14.4 |

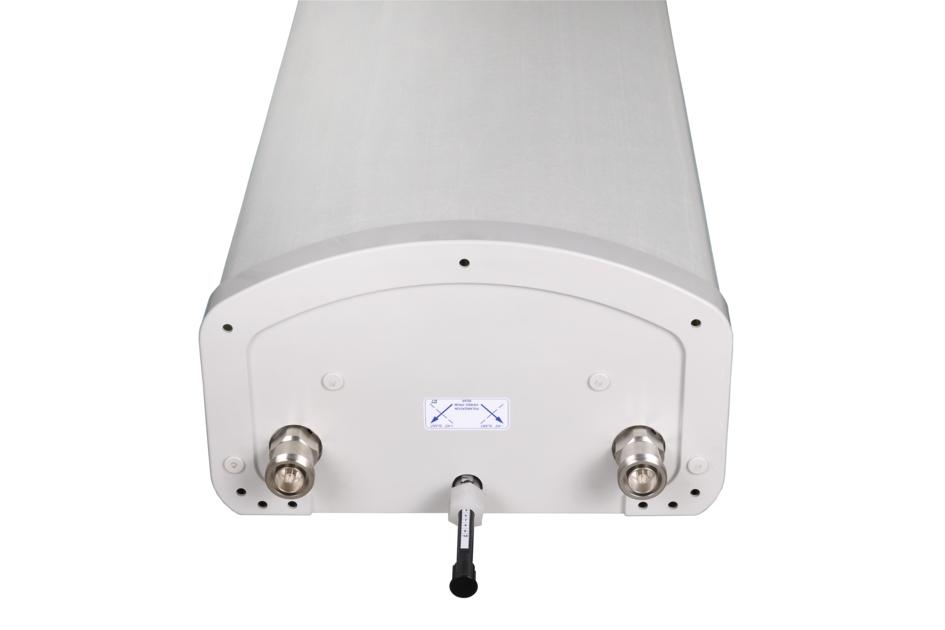

| Connector Placement | Bottom |
| Electrical Downtilt | Variable |
| Frequency Band | LTE Multi-Band |
