CommScope 7/16" D/F Ezfit for 1-1/4" AVA and FXL Cable (114EZDF)
- Brand: CommScope
- P\N: 114EZDF
- UPC: 888063659225
Live Chat
Contact Us
Description

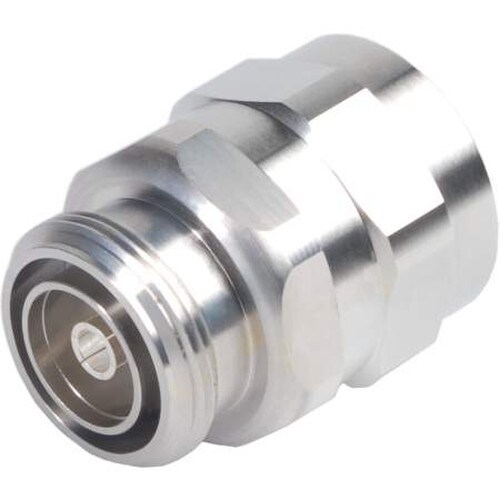

CommScope 7/16" D/F Ezfit for 1-1/4" AVA and FXL Cable (114EZDF)
CommScope's 114EZDF 7/16 DIN Female EZfit straight connector for 1-1/4 inch FXL1480 and AVA6-50 cable. 0 - 4000 MHz, 50 Ohm, 0.05 dB insertion loss. Trimetal plated outer contact, Silver plated inner contact. Clamp outer attachment, Captivated inner attachment. Meets RoHS and REACH-SVHC standards. Designed, manufactured and/or distributed under ISO 9001:2015
Specifications
| Maximum VSWR | 1.06:1 |
| RF Connector | 7/16 DIN Female |
| RF Impedance | 50 Ohms |
| RF Connector Body Style | Straight |
| Strip Tool | 1480-PT for FXL, A6-EZPT for AVA |
| Body | Trimetal |
| Low PIM | No |
| Body Material | Tri-Metal Plated Brass |
| Fits | AVA6-50; FXL-1480 |
| Frequency Range | 5-2000 MHz |
| Nut Wrench: Front/Back | 1480-AW |
| Torque Wrench | TW-114-EZFC |
| Outer Contact Attachment Type | Clamp |
