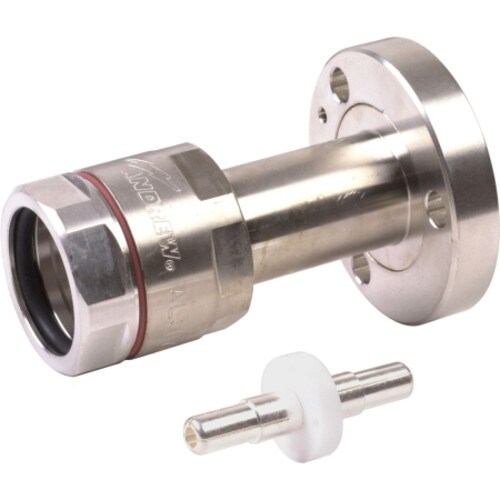

CommScope 7/8in EIA Flange For 520096102/00 Cable (AL5E78-PS)
- Brand: CommScope
- P\N: AL5E78-PS
- UPC: 888063932632
Do you have questions?
Please contact our experts for assistance.
Description
CommScope 7/8in EIA Flange For 520096102/00 Cable (AL5E78-PS): Enhance Your Connectivity
CommScope's AL5E78-PS 7/8 in EIA Positive Stop straight connector for 7/8 in AVA5-50 and AL5-50 cable. 0 - 5000 MHz, 50 Ohm, 0.05 dB insertion loss. Trimetal plated outer contact, Silver plated inner contact. Ring-flare outer attachment, Captivated inner attachment. Meets RoHS standards and is designed, manufactured and/or distributed under ISO 9001:2015
Specifications
Maximum VSWR | 1.17:1 |
RF Impedance | 50 Ohms |
RF Connector Body Style | Straight |
Body | Trimetal |
Low PIM | No |
Body Material | Tri-Metal Plated Brass |
Fits | 520096102/00 |
Frequency Range | 0-5200 MHz |
Outer Contact Attachment Type | Ring-flare |
