CommScope 7' Non-Penetrating Roof Frame for 3 1-2" OD pipes (RF-NL7-B)
- Brand: CommScope
- P\N: RF-NL7-B
- UPC: 888063090042
Live Chat
Contact Us
Description

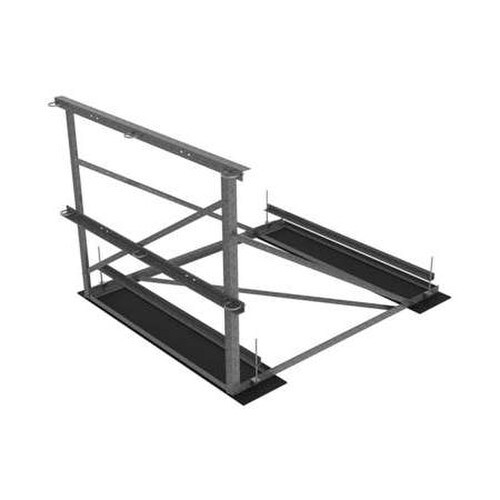

CommScope 7 foot Non-Penetrating Roof Frame (RF-NL7-B): Secure and Reliable Structural Support
COMMSCOPE's RF-NL7-B 7 foot non-penetrating roof frame. 3 1/2 inch OD pipe not included. U-bolts allow mounting of 2 – 4 antennas. Hot-dip galvanized steel.
Specifications
Specifications
Product Classification
| Product Type | Non-penetrating roof frame |
General Specifications
| Mounting | Non-penetrating |
| Note | Four 96 in x 18 in panel antennas per sector |
| Pipe, quantity | 0 |
Dimensions
| Height | 1905 mm | 75 inch |
| Face Width | 2.134 m | 7 foot |
| Width | 2133.6 mm | 84 inch |
| Length | 2.53 m | 8.3 foot |
| Pipe Length | 0.000 mm | 0 inch |
| Pipe Outer Diameter | 88.9 mm | 3.5 inch |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | For Specifications, please contact steelproducts@commscope.com or call 800-255-1479 |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and Weights
| Included | Rubber mats, with or without pipe mounts |
| Packaging quantity | 1 |
| Weight, net | 217 kg | 478.403 lbs. |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| ROHS | Compliant/Exempted |
CHINA-ROHS | Above maximum concentration value |
| UK-ROHS | Compliant/Exempted |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
