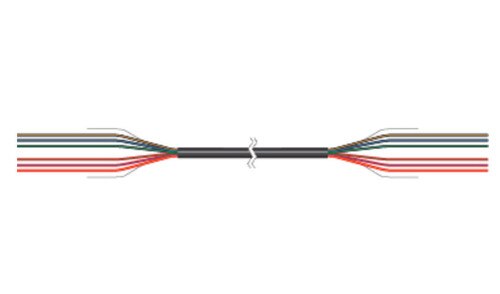

CommScope 8 AWG Power Cable 6-Conductor per foot (PWRT-608-S)
- Brand: CommScope
- P\N: PWRT-608-S
- UPC: 646444912792
Live Chat
Contact Us
Description
CommScope 8 AWG Power Cable 6-Conductor (PWRT-608-S)
Experience the power of reliable connectivity with the CommScope 8 AWG Power Cable 6-Conductor. This high-quality power cable is designed to deliver consistent performance, ensuring your devices are powered efficiently and effectively.
Key Features:
- 8 AWG 6 Conductor Shielded: Provides robust and reliable power transmission
- 600 Volts Power Tray Cable: Ensures high voltage capacity for demanding applications
- #8 Tinned Copper w/ #10 bare ground wire: Offers superior conductivity and grounding
- UL approved for direct burial/UV: Ensures safety and durability in various installation environments
- 0.082" diameter: Compact design for easy installation and routing
Upgrade your power transmission system with the CommScope Power Cable today. Experience the power of reliable connectivity. Order now!
Specifications
Product Classification
| Regional Availability | North America |
| Portfolio | CommScope® |
| Product Type | Power cable |
| Product Brand | HELIAX® |
| Product Series | PWRT |
| Ordering Note | CommScope® non-standard product |
General Specifications
| Cable Type | Power |
| Conductor Type, singles | Stranded |
| Conductors, quantity | 6 |
| Construction Type | Discrete power cable | Non-armored |
| Ground Wire Type | Stranded |
| Jacket Color | Black |
| Jacket Color, singles | Black with co-extruded blue stripe | Black with co-extruded green stripe Black with co-extruded orange stripe |Red with co-extruded blue stripe Red with co-extruded green stripe | Red with co-extruded orange stripe |
| Supported Application | Industrial |
Dimensions
| Diameter Over Conductor, singles, specific | 0.1520 in per 19 strands |
| Diameter Over Dielectric | 6.147 mm | 0.242 in |
| Diameter Over Drain Wire, specific | 2.5700 in per 7 strands |
| Diameter Over Ground Wire | 2.921 mm | 0.115 in |
| Diameter Over Jacket, nominal | 20.117 mm | 0.792 in |
| Diameter Over Jacket, maximum | 20.625 mm | 0.812 in |
| Diameter Over Shield (Braid) | 18.542 mm | 0.73 in |
| Jacket Thickness | 1.524 mm | 0.06 in |
| Conductor Gauge, singles | 8 AWG |
| Drain Wire Gauge | 12 AWG |
| Ground Wire Gauge | 10 AWG |
| Outer Shield (Braid) Gauge | 36 AWG |
Electrical Specifications
| Conductor dc Resistance | 2.198 ohms/km | 0.67 ohms/kft |
| Conductor dc Resistance Note | Maximum value based on a standard condition of 20 °C (68 °F) |
| Safety Voltage Rating | 600 V |
Material Specifications
| Conductor Material | Tinned copper |
| Dielectric Material | PVC |
| Drain Wire Material | Tinned copper |
| Filler Material | Polypropylene |
| Ground Wire Material | Tinned copper |
| Insulation Material, singles | PVC |
| Jacket Material | PVC |
| Outer Shield (Braid) Coverage | 65 % |
| Outer Shield (Braid) Material | Tinned copper |
| Outer Shield (Tape) Material | Aluminum/Poly, non-bonded |
Environmental Specifications
| Operating Temperature | -40 °C to +90 °C (-40 °F to +194 °F) |
| Environmental Space | UV resistant for outdoor and/or direct burial installations |
| Safety Standard | NEC Article 336 (Type TC) |
Packaging and Weights
| Cable weight | 922.662 kg/km | 620 lb/kft |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
