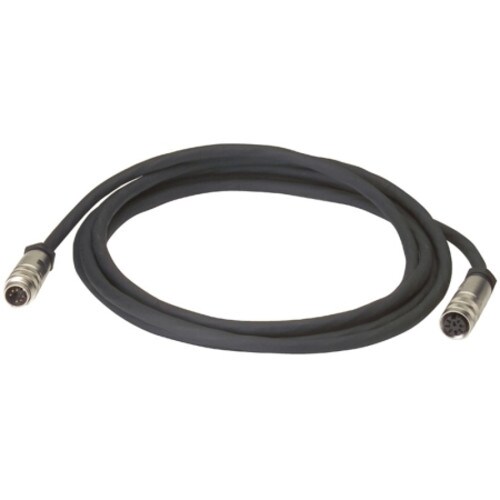

CommScope - 80 Meter Tele-tilt Cable (ATCB-B01-080)

CommScope - 80 Meter Tele-tilt Cable (ATCB-B01-080): Enhance Your Remote Electrical Tilt System

Key Features and Benefits

• 80-meter length for versatile installation options
• AISG and RoHS compliant for safety and reliability
• High-quality construction for optimal performance
• Compatible with AISG 1.1 and AISG 2.0 protocols
• Designed for use in harsh environments

Upgrade your remote electrical tilt (RET) system with the CommScope 80 Meter Tele-tilt Cable (ATCB-B01-080). This high-quality cable is designed to feed data and power to RET system components, ensuring smooth and efficient operation. With its 80-meter length, you'll have the flexibility to install your system components in the most convenient locations.

Technical Specifications

• AISG connectors: 8-pin DIN Female and Male
• Color: Black
• Data Conductor Type: 0.24 mm² (24 AWG) twisted pair
• Power Conductor Type: 0.82 mm² (18 AWG) stranded
• Total Conductors: 6
• Length: 80 m | 262.467 ft
• Diameter Over Jacket: 8 mm | 0.315 in
• Protocol: AISG 1.1 | AISG 2.0
• Voltage, maximum: 300 V
• Operating Temperature: -40 °C to +70 °C (-40 °F to +158 °F)
• Relative Humidity: Up to 100%

Constructed with high-quality materials, the CommScope Tele-tilt Cable is designed to withstand harsh environmental conditions, including extreme temperatures, humidity, and UV exposure. Its IP67 rating ensures protection against dust and water ingress, making it suitable for both indoor and outdoor installations.

Regulatory Compliance and Certifications

The CommScope 80 Meter Tele-tilt Cable is compliant with various regulatory standards, including ISO 9001:2015. This ensures that the cable is safe, reliable, and environmentally friendly, giving you peace of mind when incorporating it into your RET system.

Don't compromise on quality and performance when it comes to your remote electrical tilt system. Invest in the CommScope 80 Meter Tele-tilt Cable (ATCB-B01-080) and experience the difference that a high-quality cable can make. Upgrade your RET system today and enjoy seamless operation and enhanced performance.
