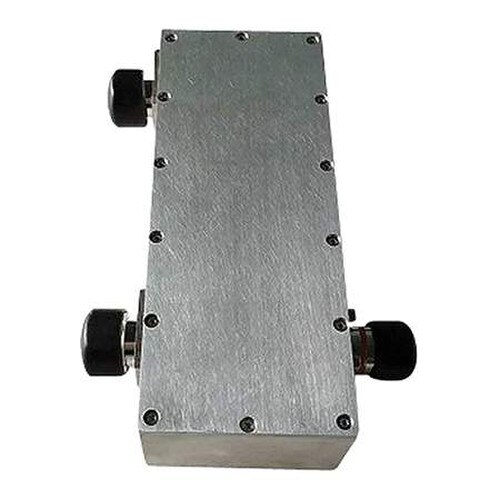

CommScope Diplexer 614-896Mhz 1695-2200Mhz (7779139-00)

Introducing the CommScope Diplexer 614-896Mhz 1695-2200Mhz (7779139-00)

Experience seamless connectivity with the CommScope Diplexer 614-896Mhz 1695-2200Mhz (7779139-00), a high-performance device designed to enhance your in-building cellular systems. This outdoor diplexer, part of the renowned ERA® product line, ensures optimal signal quality and reliability for your communication needs.

Key Features and Benefits

• Wide operating frequency band: 614 – 896 MHz | 1695 – 2200 MHz
• Low insertion loss and high return loss for improved signal quality
• High isolation to minimize interference between frequency bands
• Compact and durable design with IP65 ingress protection
• 4.3-10 Male input connector interface and 4.3-10 Female output connector interface

Technical Specifications

• Application: Outdoor
• Dimensions: 178 mm x 69 mm x 41 mm (7.008 in x 2.717 in x 1.614 in)
• Weight: 3.06 lbs
• Insertion Loss, maximum: 0.25 dB
• Return Loss, minimum: 23 dB
• Average Power, maximum: 1 W
• Impedance: 50 ohm
• Intermodulation: -155dBc @ 2 x +30dBm CW (3rd Order)
• Isolation, maximum: 40 dB
• Passband Ripple, Tolerance: ± 0.7 dB
• Peak Power, maximum: 0.01 kW
• Ingress Protection Test Method: IEC 60529:2001, IP65

With its advanced features and robust construction, the CommScope Diplexer 614-896Mhz 1695-2200Mhz (7779139-00) is the perfect solution for professionals seeking to improve their communication systems. Its wide operating frequency band and high isolation ensure minimal interference, while the low insertion loss and high return loss guarantee optimal signal quality. The compact and durable design, coupled with IP65 ingress protection, makes it suitable for outdoor applications.

For detailed product specifications, please contact your local CommScope representative.

Don't let poor signal quality hinder your communication capabilities. Upgrade your in-building cellular systems with the CommScope Diplexer 614-896Mhz 1695-2200Mhz (7779139-00) today and experience the difference in performance and reliability. Order now and enhance your connectivity!
