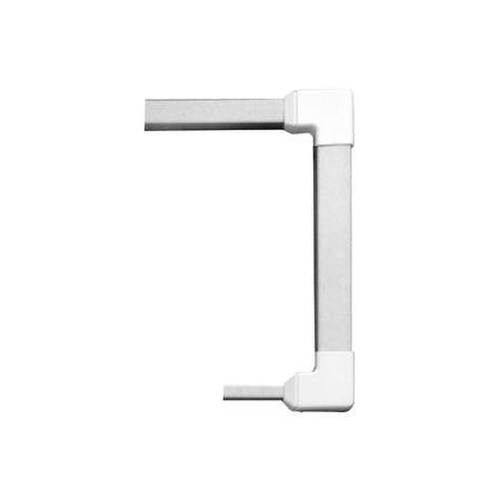

CommScope FiberGuide 6ft Vertical Duct Kit 4in x 2in (FGS-KTW2-T)

CommScope FiberGuide 6ft Vertical Duct Kit 4in x 2in (FGS-KTW2-T): Optimal Cable Management Solution

Key Features and Benefits

• Complete off-frame fiber cable protection
• Maintains minimum bend radius throughout the system
• Designed for central office, mobile switching center, and data center applications
• Wide range of FiberGuide design tools for engineers and installers
• Regional availability in Asia, Australia/New Zealand, EMEA, Latin America, and North America

Product Overview

The CommScope FiberGuide 6ft Vertical Duct Kit 4in x 2in (FGS-KTW2-T) is a high-quality cable management solution designed to provide total off-frame fiber cable protection. This innovative product ensures that the minimum bend radius is maintained throughout the entire system, regardless of its size. The FiberGuide is an optical raceway system specifically designed for central office, mobile switching center, and data center applications.

Engineers and installers can benefit from the large suite of available FiberGuide design tools, making the installation process smooth and efficient. The product is part of the CommScope® portfolio and is available in various regions, including Asia, Australia/New Zealand, EMEA, Latin America, and North America.

Technical Specifications

• Product Type: Fiber raceway slotted channel with hinged cover
• Product Brand: FiberGuide®
• Product Series: FGS
• Product Feature: Slotted
• Color: Yellow
• Orientation: Vertical
• Section Type: Straight Section
• Dimensions: Height - 50.8 mm (2 in), Width - 101.6 mm (4 in), Length - 1829 mm (72.008 in)
• System Dimensions: 102 mm x 51 mm (4 in x 2 in)
• Material Type: Engineering Thermoplastic
• Flammability Rating: CSA S143, UL 2024, UL 94 V-0
• Halogen Characteristics: Blue Angel, TCO '99, WEEE
• Safety Standard: CSA, UL
• Weight, net: 2.885 kg (6.360 lb)
• Regulatory Compliance/Certifications: ROHS, CHINA-ROHS, REACH-SVHC, UK-ROHS

With its advanced design and superior cable protection, the CommScope FiberGuide 6ft Vertical Duct Kit 4in x 2in (FGS-KTW2-T) is the perfect solution for professionals looking to optimize their cable management systems. Its durable engineering thermoplastic material ensures long-lasting performance, while its compliance with various safety and environmental standards guarantees a safe and eco-friendly product.

Don't compromise on cable management – invest in the CommScope FiberGuide 6ft Vertical Duct Kit 4in x 2in (FGS-KTW2-T) today and experience the difference in quality and performance. Order now and enjoy a seamless installation process and optimal cable protection for your central office, mobile switching center, or data center applications.
