CommScope FiberGuide Vertical Duct Kit 6ft Hinged Cover (FGS-KTW1-JA)

CommScope FiberGuide Vertical Duct Kit 6ft Hinged Cover (FGS-KTW1-JA)

Key Features and Benefits

• Complete off-frame fiber cable protection
• Maintains minimum bend radius throughout the system
• Optical raceway system for various applications
• Wide range of design tools for engineers and installers

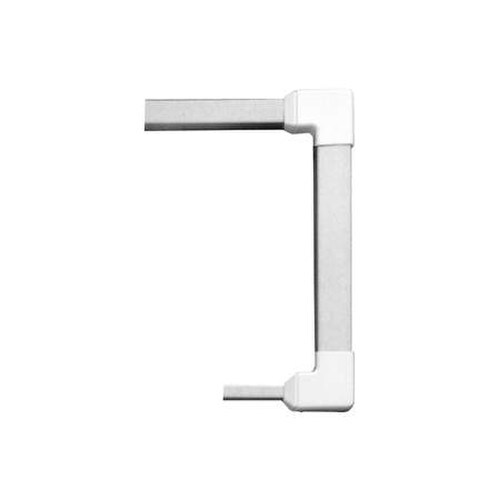

Introducing the CommScope FiberGuide Vertical Duct Kit 6ft Hinged Cover (FGS-KTW1-JA), a high-quality cable management solution designed to ensure total off-frame fiber cable protection. This FiberGuide product is an optical raceway system suitable for central office, mobile switching center, and data center applications. With its large suite of available design tools, both engineers and installers can benefit from the ease of use and versatility of this product.

Technical Specifications

• Product Type: Fiber raceway slotted channel with hinged cover
• Product Brand: FiberGuide®
• Product Series: FGS
• Product Feature: Slotted
• Color: Yellow
• Orientation: Vertical
• Section Type: Straight Section
• Dimensions: 50.8 mm x 50.8 mm x 1829 mm (2 in x 2 in x 72.008 in)
• Material Type: Engineering Thermoplastic
• Flammability Rating: CSA S143 | UL 2024 | UL 94 V-0
• Halogen Characteristics: Blue Angel | TCO '99 | WEEE
• Safety Standard: CSA | UL
• Weight, net: 0.084 kg | 0.185 lb
• Regulatory Compliance/Certifications: ROHS, CHINA-ROHS, REACH-SVHC, UK-ROHS

Unparalleled Cable Protection

The CommScope FiberGuide Vertical Duct Kit is designed to maintain a minimum bend radius throughout the entire system, regardless of the system size. This ensures that your fiber cables are protected from potential damage and signal loss, providing you with peace of mind and a reliable network infrastructure.

Flexible and Easy to Install

With its slotted design and hinged cover, the FiberGuide Vertical Duct Kit is easy to install and provides quick access to your cables when needed. The engineering thermoplastic material ensures durability and long-lasting performance, while the yellow color adds a touch of visual appeal to your cable management system.

Compliant with Industry Standards

Rest assured knowing that the CommScope FiberGuide Vertical Duct Kit is compliant with various industry standards, including ROHS, CHINA-ROHS, REACH-SVHC, and UK-ROHS. This ensures that you are investing in a high-quality, environmentally friendly product that meets the requirements of today's demanding market.

Upgrade your cable management system with the CommScope FiberGuide Vertical Duct Kit 6ft Hinged Cover (FGS-KTW1-JA) and experience the difference in performance and reliability. Order now and take the first step towards a more organized and efficient network infrastructure!
