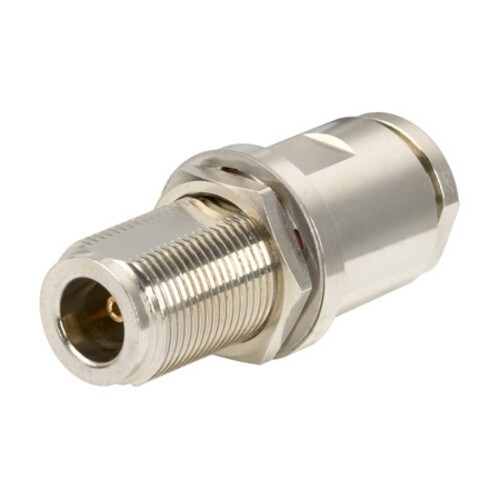

CommScope N-Female Bulkhead for CNT-400 Braided Cable (400PNF-BHC)

Introducing the CommScope N-Female Bulkhead for CNT-400 Braided Cable (400PNF-BHC)

Upgrade your cable connections with the CommScope N-Female Bulkhead for CNT-400 Braided Cable (400PNF-BHC). This high-quality connector is designed to provide a secure and reliable connection for your CNT-400 braided cables, ensuring optimal performance and durability. With its gold-plated inner contacts and trimetal outer contacts, this connector offers excellent electrical conductivity and corrosion resistance, making it perfect for both indoor and outdoor applications.

Key Features and Benefits

• Designed specifically for CNT-400 braided cables
• Gold-plated inner contacts for superior conductivity
• Trimetal outer contacts for enhanced corrosion resistance
• Easy-to-install clamp attachment method
• Wide operating frequency band (0-6000 MHz)
• High connector retention force and torque for a secure connection
• Compliant with various international standards and certifications

Technical Specifications

• Product Type: Braided cable connector
• Product Brand: CNT® | ConQuest®
• Body Style: Bulkhead
• Inner Contact Attachment Method: Captivated
• Interface: N Female
• Outer Contact Attachment Method: Clamp
• Pressurizable: No
• Dimensions: 22.35 mm x 49.78 mm x 22.35 mm
• Weight: 84.15 g
• Operating Temperature: -40 °C to +85 °C
• Storage Temperature: -65 °C to +125 °C
• Operating Frequency Band: 0 – 6000 MHz
• Connector Impedance: 50 ohm
• Insertion Loss, typical: 0.05 dB
• Average Power at Frequency: 580.0 W @ 900 MHz
• Peak Power, maximum: 10 kW
• RF Operating Voltage, maximum (vrms): 707 V

Whether you're a professional installer or a DIY enthusiast, the CommScope N-Female Bulkhead for CNT-400 Braided Cable (400PNF-BHC) is the perfect solution for your cable connection needs. Its easy-to-install design and high-quality materials ensure a secure and reliable connection that will stand the test of time. Don't settle for subpar connectors – invest in the best with the CommScope N-Female Bulkhead for CNT-400 Braided Cable (400PNF-BHC).

Upgrade your cable connections today with the CommScope N-Female Bulkhead for CNT-400 Braided Cable (400PNF-BHC) – order now and experience the difference!
