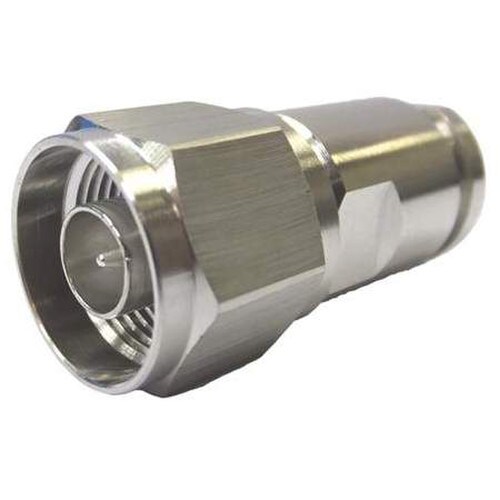

CommScope N Male Clamp for CNT-300 Braided Cable (300BPNM-C)

CommScope N Male Clamp for CNT-300 Braided Cable (300BPNM-C)

Key Features and Benefits

• High-quality N Male connector for CNT-300 braided cable
• Easy-to-use clamp attachment method
• Low insertion loss for optimal signal transmission
• Wide operating frequency range (0-6000 MHz)
• Robust mechanical and environmental specifications
• Compliant with international standards and certifications

Superior Connectivity Solution

Upgrade your cable connections with the CommScope N Male Clamp for CNT-300 Braided Cable (300BPNM-C). This high-quality connector is designed to provide a secure and reliable connection for your CNT-300 braided cable, ensuring optimal signal transmission and minimal signal loss. With its easy-to-use clamp attachment method, you can quickly and effortlessly install this connector to your cable.

Impressive Technical Specifications

Featuring a wide operating frequency range of 0-6000 MHz, this connector is suitable for various applications, including wireless communication systems, satellite systems, and more. Its low insertion loss of 0.05 dB ensures minimal signal degradation, while its 50-ohm impedance matches the cable impedance for optimal performance. Additionally, this connector boasts robust mechanical and environmental specifications, making it suitable for use in harsh conditions.

Technical Specifications

• Operating Frequency Band: 0-6000 MHz
• Insertion Loss, typical: 0.05 dB
• Cable Impedance: 50 ohm
• Connector Impedance: 50 ohm
• dc Test Voltage: 2000 V
• Inner Contact Resistance, maximum: 1 mOhm
• Insulation Resistance, minimum: 5000 mOhm
• Peak Power, maximum: 10 kW
• RF Operating Voltage, maximum (vrms): 707 V

International Standards and Certifications

The CommScope N Male Clamp for CNT-300 Braided Cable (300BPNM-C) is designed, manufactured, and distributed under an ISO 9001:2015 quality management system. It is also compliant with RoHS and UK-RoHS regulations, ensuring that it meets the highest standards for safety and environmental protection.

Upgrade your cable connections with the CommScope N Male Clamp for CNT-300 Braided Cable (300BPNM-C) today and experience the difference in performance and reliability. Don't wait – order now!
