CommScope N-Male Connector for RG142 CNT Cable (RG142TNM-CR)

Introducing the CommScope N-Male Connector for RG142 CNT Cable (RG142TNM-CR)

Upgrade your cable connections with the high-quality CommScope N-Male Connector for RG142 CNT Cable (RG142TNM-CR). This reliable and durable connector is designed to provide a secure and stable connection for your RG142 braided cable, ensuring optimal performance and longevity. With its gold-plated inner contact and trimetal outer contact plating, this connector offers excellent conductivity and corrosion resistance, making it a top choice for professionals seeking a dependable solution for their cable connections.

Key Features and Benefits

• Designed for use with RG142 braided cable
• Gold-plated inner contact for optimal conductivity
• Trimetal outer contact plating for corrosion resistance
• 50 ohm cable and connector impedance
• Operating frequency band of 0 – 6000 MHz
• Easy-to-install crimp outer contact attachment method
• Meets various IEC and ISO standards for quality and performance

Technical Specifications

• Product Type: Braided cable connector
• Product Brand: CNT®
• Body Style: Straight
• Inner Contact Attachment Method: Solder
• Interface: N Male
• Pressurizable: No

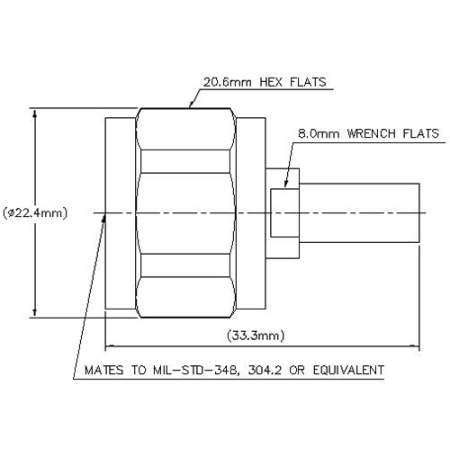

• Dimensions: 223.5 mm x 33.32 mm x 22.35 mm
• Nominal Size: 0.195 in
• Insertion Loss, typical: 0.05 dB
• Average Power at Frequency: 150.0 W @ 900 MHz
• dc Test Voltage: 1000 V
• Inner Contact Resistance, maximum: 1 mOhm
• Insulation Resistance, minimum: 5000 mOhm
• Outer Contact Resistance, maximum: 0.25 mOhm
• Peak Power, maximum: 2.5 kW
• RF Operating Voltage, maximum (vrms): 353 V

With its impressive technical specifications and adherence to industry standards, the CommScope N-Male Connector for RG142 CNT Cable (RG142TNM-CR) is the ideal choice for professionals looking to enhance their cable connections. Its easy installation and compatibility with RG142 braided cable make it a convenient and efficient solution for a variety of applications.

Don't settle for subpar cable connections – invest in the CommScope N-Male Connector for RG142 CNT Cable (RG142TNM-CR) today and experience the difference that quality and reliability can make in your cable connections. Upgrade your cable connections now and enjoy the benefits of a secure and stable connection!
