CommScope Pipe to Pipe Adapter With Tapered Leg (AB-S50-SSH)
- Brand: CommScope
- P\N: AB-S50-SSH
- UPC: 646444368384
Live Chat
Contact Us
Description
Introducing the CommScope Pipe to Pipe Adapter for Tapered Leg (AB-S50-SSH)

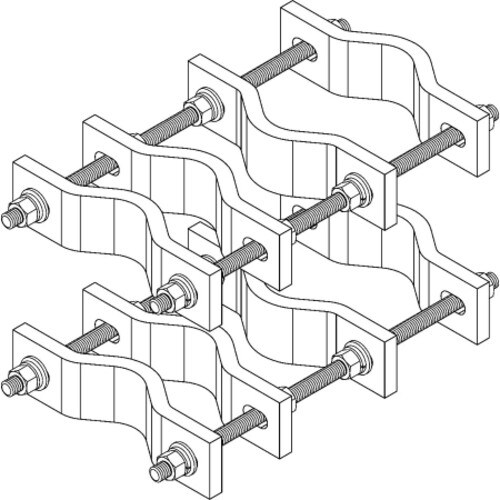

Tapered Pipe-to-Pipe Adapter, adapts 1-1/2 inch to 3-1/2 inch OD pipe to 2-3/8 inch to 5 inch OD pipe
Specifications
Product Classification
| Product Type | Adapter |
General Specifications
| Mounting | Pipe-to-pipe |
| Tower Taper | Tapered |
Dimensions
| Height | 50.8 mm | 2 inch |
| Width | 203.2 mm | 8 inch |
| Length | 304.8 mm | 12 inch |
| Mounting Diameter 2, maximum | 127 mm | 5 inch |
| Mounting Diameter 2, minimum | 60.96 mm | 2.4 inch |
| Mounting Diameter, maximum | 88.9 mm | 3.5 inch |
| Mounting Diameter, minimum | 38.1 mm | 1.5 inch |
Material Specifications
| Material Type | Hot dip galvanized steel |
Packaging and Weights
| Included | Clamp halves | Threaded rod |
| Packaging quantity | 2 |
| Weight, net | 12.7 kg | 27.999 lbs. |
