CommScope Splice for EW63 (163DZ)

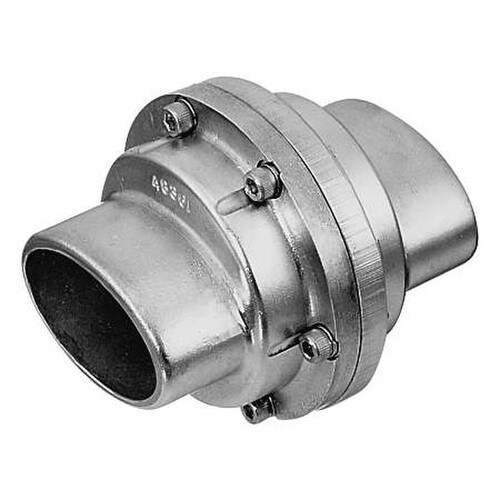

Introducing the CommScope Splice for EW63 (163DZ)

Experience seamless connectivity with the CommScope Splice for EW63 (163DZ), a high-quality elliptical waveguide connector designed to provide reliable and efficient connections for your communication systems. Crafted with precision and durability in mind, this splice is perfect for professionals seeking a reliable solution for their waveguide needs.

Key Features and Benefits

• Efficient and reliable connectivity for elliptical waveguide 63
• Low insertion loss of 0.01 dB for optimal signal transmission
• Wide operating frequency band of 5.850 – 7.125 GHz
• Constructed with durable brass material for long-lasting performance
• Pressurizable design for added protection and reliability
• Compliant with various regulatory standards, ensuring quality and safety

Technical Specifications

• Attachment Method: Tab-flare | Tool-flare
• Body Style: Splice
• Inner Contact Plating: Unplated
• Interface: Splice
• Outer Contact Plating: Unplated
• Pressurizable: Yes
• Dimensions: Width - 85.852 mm (3.38 in) | Length - 66.04 mm (2.6 in)
• Insertion Loss, typical: 0.01 dB
• Operating Frequency Band: 5.850 – 7.125 GHz
• Material Type: Brass
• Operating Temperature: -55 °C to +85 °C (-67 °F to +185 °F)
• Storage Temperature: -55 °C to +85 °C (-67 °F to +185 °F)
• Weight, net: 1.5 kg (3.307 lb)

Designed, manufactured, and distributed under the ISO 9001:2015 quality management system, the CommScope Splice for EW63 (163DZ) is also compliant with ROHS REACH-SVHC, and UK-ROHS regulations, ensuring that you are investing in a product that meets the highest standards of quality and safety.

Upgrade your communication systems with the CommScope Splice for EW63 (163DZ) and experience the difference in performance and reliability. Don't settle for anything less than the best when it comes to your connectivity needs. Order your CommScope Splice for EW63 (163DZ) today and enjoy seamless connections for your communication systems.
