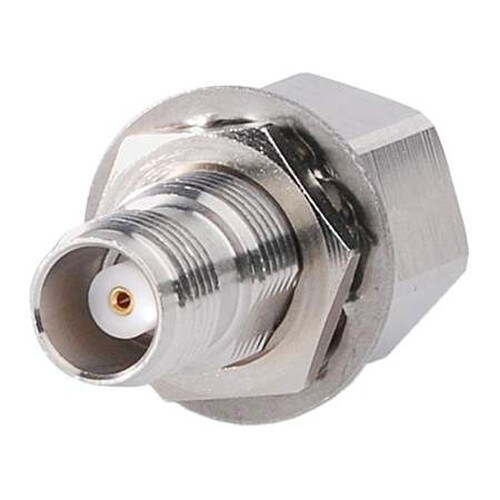

CommScope TNC Female Connector for 1/4in FSJ1-50A (41AENT-GE)

  • Brand: CommScope
  • P\N: 41AENT-GE
  • UPC: 888063325618
(0)No Reviews yet

Availability: Backorder


Your Price: $38.00

Do you have questions?

Please contact our experts for assistance.

Description

Description

Introducing the CommScope TNC Female Connector for 1/4in FSJ1-50A (41AENT-GE)

Upgrade your wireless and radiating connections with the high-quality CommScope TNC Female Connector for 1/4in FSJ1-50A (41AENT-GE). Designed for professionals who demand the best in performance and reliability, this connector is part of the renowned HELIAX® product series and offers exceptional electrical and mechanical specifications.

Key Features and Benefits

  • Compatible with FSJ1-50A cable family
  • Gold-plated inner contact for optimal signal transmission
  • Trimetal outer contact plating for enhanced durability
  • Wide operating frequency band (0 – 18000 MHz)
  • High shielding effectiveness (-110 dB)
  • 500 cycles of attachment durability
  • Operating temperature range of -55 °C to +85 °C (-67 °F to +185 °F)

Technical Specifications

With a straight body style and a TNC female interface, this connector is designed for easy installation and secure connections. The connector's dimensions are 20.57 mm (0.810 in) in width, 51.82 mm (2.040 in) in length, and 20.57 mm (0.810 in) in diameter, making it a compact and lightweight solution for your connectivity needs.

Electrical specifications include a 3rd order IMD at frequency of -102 dBm @ 910 MHz, average power at frequency of 396.0 W @ 900 MHz, and a cable impedance of 50 ohm. The connector also boasts a maximum peak power of 5 kW and an RF operating voltage of 500 V (vrms).

Environmentally friendly, the CommScope TNC Female Connector is designed to withstand a wide range of temperatures and conditions, including corrosion, moisture, and thermal shock. The connector is also compliant with ISO 9001:2015 quality management standards.

Easy Installation and Maintenance

The CommScope TNC Female Connector features a captivated inner contact attachment method and a tab-flare outer contact attachment method, ensuring a secure and reliable connection. With a connector retention tensile force of 449.27 N (101.000 lbf) and an insertion force of 27.98 N (6.290 lbf), you can trust this connector to maintain its integrity even under demanding conditions.

Don't compromise on your wireless and radiating connections – choose the CommScope TNC Female Connector for 1/4in FSJ1-50A (41AENT-GE) and experience the difference in quality and performance. Upgrade your connectivity today!
