CommScope Universal Pipe Mount Kit for 4-1/2-Inch OD Pipes (PM-SU4L-B)

CommScope Universal Pipe Mount Kit for 4-1/2-Inch OD Pipes (PM-SU4L-B)

Key Features and Benefits

• Universal adjustable sliding pipe mount kit for 4-1/2 in OD pipe
• 6–14 in stand-off for versatile mounting options
• Hot dip galvanized steel for enhanced durability
• Supports one 8 ft microwave antenna with stiff arm
• Wind rating of 120 mph (BWS) at 150 ft AGL
• Compliant with ISO 9001:2015, ROHS, CHINA-ROHS, REACH-SVHC, and UK-ROHS

Overview

The CommScope Universal Pipe Mount Kit (PM-SU4L-B) is designed to provide structural support for mounting 4-1/2-inch OD pipes on various tower types. This versatile kit offers a 6–14 inch adjustable stand-off, allowing for flexible mounting options to suit your specific needs. Constructed from hot dip galvanized steel, this mount kit ensures long-lasting durability and reliable performance in various weather conditions.

Technical Specifications

• Mounting options: Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) | Straight or tapered legs up to 203.2 mm (8 in) OD
• Tower Taper: Non-tapered | Tapered
• Dimensions: Height - 127 mm (5 in) | Width - 304.8 mm (12 in) | Length - 304.8 mm (12 in)
• Mounting Diameter: Maximum - 203.2 mm (8 in) | Minimum - 0 mm (0 in)
• Pipe Outer Diameter: 114.3 mm (4.5 in)
• Stand-off Distance: 355.6 mm (14 in) | Adjustable - 6–14 in (15.2–35.6 cm)
• Wind Rating: 120 mph (BWS) at 150 ft AGL | Test Method: TIA/EIA-222
• Weight, net: 40.9 kg (90.169 lb)

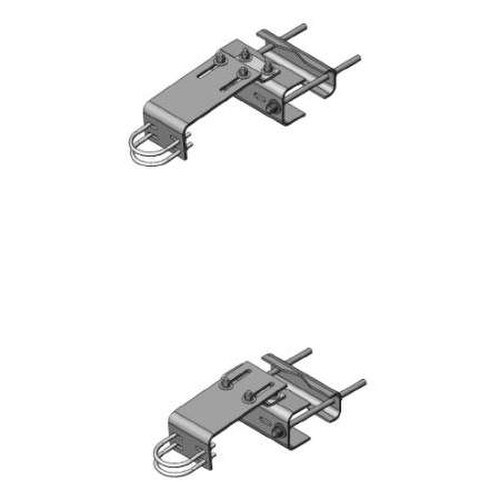

What's Included

• Sliding pipe mount brackets
• Universal saddle mount

Designed, manufactured, and distributed under the ISO 9001:2015 quality management system, the CommScope Universal Pipe Mount Kit (PM-SU4L-B) is compliant with ROHS, CHINA-ROHS, REACH-SVHC, and UK-ROHS regulations, ensuring a high-quality and environmentally friendly product.

Upgrade your tower mounting solution with the CommScope Universal Pipe Mount Kit for 4-1/2-Inch OD Pipes (PM-SU4L-B) today and experience the benefits of a reliable, versatile, and durable mounting system. Don't wait – order now!
