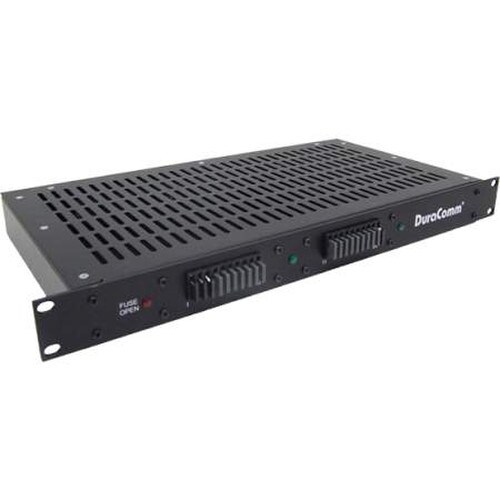

DuraComm Fuse Power Distribution Panel (DP-20GMT-24)

DuraComm Fuse Power Distribution Panel (DP-20GMT-24)

Key Features and Benefits

Experience the power of efficient energy distribution with the DuraComm Fuse Power Distribution Panel. This rackmount (1U) 100 Amp 24 VDC power distribution panel is designed to provide up to 20 load circuits protected by individual GMT series fuses (fuses not included).

• Each circuit can be fused up to 15 Amps, with a total 20-circuit load of 100 Amps maximum.
• Heavy duty DC input connectors provide strong ¼ inch studs to accept up to 100 amps at 24VDC from a single power supply.
• All inputs and outputs are isolated from the frame for use in positive ground, negative ground, or floating applications.
• Fuses and LED status indicators are on the front of the unit, while input, output, and alarm connections are on the rear.
• Two green LEDs are provided, and each one indicates a power supply status for a bank of ten load circuits.
• When any fuse fails, a red LED is turned on to indicate the condition, and allow technicians to quickly find the panel with the failed fuse.
• Form C relay contacts, which are isolated from the frame and power circuits, indicate when there is a fuse failure by providing normally open and normally closed contacts to activate a remote alarm or monitoring systems.
• These contacts are available via a rear-panel barrier strip.

Technical Specifications

The DuraComm Fuse Power Distribution Panel is a Rackmount (1U) 100 Amp 24 VDC power distribution panel. It provides up to 20 load circuits protected by individual GMT series fuses. Each circuit can be fused up to 15 Amps, with a total 20-circuit load of 100 Amps maximum.

Additional Services

Additional DuraComm services are available to customize the DP-20GMT series distribution panels to your specification. This ensures that you get a product that fits your specific needs and requirements.

Experience the power of efficient energy distribution with the DuraComm Fuse Power Distribution Panel. Don't miss out on this opportunity to upgrade your power distribution system. Order now!

Special Order. Non-Cancellable and Non-Returnable
